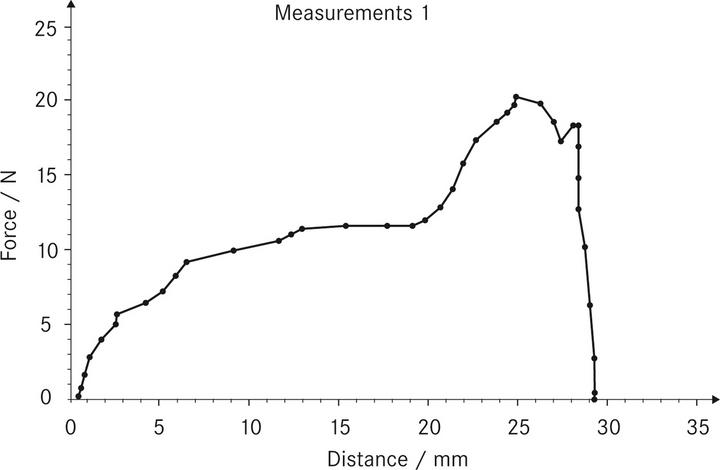

The software AFH LD is designed for all applications where force is sought in relation to distance. Typically, these force profiles are required in penetration or extraction tests. The program simultaneously captures the measurement data from a force measuring device as well as a length measuring device. The measurement data from both instruments is continuously transmitted to the PC, synchronized by the AFH LD software, and output as a graphic as well as in a free data format for easy processing in Microsoft Excel. The AFH LD software is compatible with all devices in the SAUTER FC, FH, FL, FS series. These measuring instruments are generally used in conjunction with SAUTER test stands, especially the SAUTER TVM-N and TVS series. However, they can also be used with mechanical testing machines.

Additional evaluation functions:

• Expansion of the test object
• Tensile and compressive force
• Load testing
• Archiving of recorded data

Delivery contents of SAUTER AFH LD:

• AFH LD software on DVD
• User manual
• RS-232 interface cable for FH
• USB interface cable for FL

Compatible with the following operating systems: Microsoft Windows 10, 11.

Order example for a complete testing system:

• FH 5K (Digital force measuring device)
• LB 300-2 (Digital length measuring device)
• AFH FD (Force-displacement software)
• TVM 5000N230N (Test stand)
• LB-A02 (Mounting LB on test stand)
• 2× AFH 12 (RS-232/USB adapter)
• AC 04 (Holder for test object)
• 963-163 (Calibration force)
• 961-150 (Calibration length)

Force-displacement software, but only in conjunction with a length measuring device from the SAUTER LD series.
