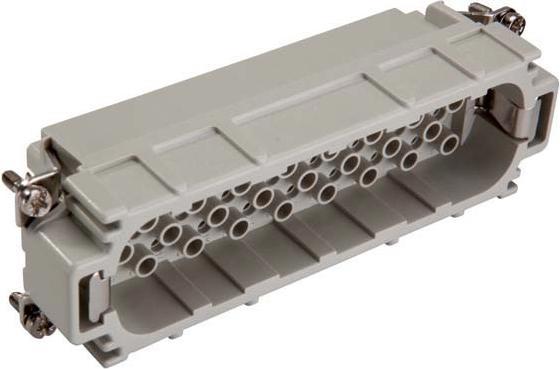

The H-D 64 SCM connector insert from Lapp Accessories is a high-quality contact insert specifically designed for applications requiring a high number of contacts. With a pin count of 64 and a contact diameter of 1.6 mm, this connector insert provides a reliable connection for various electrical applications. The insert is made from robust thermoplastic and can be used in a temperature range of -40 to 125 °C, making it ideal for demanding environments. The silver contact plating and brass contact material ensure excellent conductivity and durability. The connector insert features a crimp connection and allows the use of fine-stranded, single-stranded, and multi-stranded conductors with a cross-section of 0.14 to 2.5 mm². Additionally, the insert is equipped with wire protection and meets the flame retardancy class V0 according to UL 94, providing extra safety.

• High contact count with 64 poles for versatile applications
• Temperature resistant from -40 to 125 °C
• Silver-plated contacts for improved conductivity
• Crimp connection for easy and secure connection
• Flame retardancy class V0 according to UL 94 for enhanced safety.
