Maico Roof Tile DP 125 TB

Manufacturer: Maico
Designation: Roof Tile
Connection: 125 mm
Type: DP 125 TB

Suitable for:

• Roof fans: no
• Wall-mounted fans: yes
• Box fans: no
• Circulation fans: no
• Duct fans: no
• Centrifugal fans: no
• Wall-insert fans: no
• Residential fans: yes
• Heat recovery systems: yes

Type of mechanical accessories: other

Further details:
For the supply or exhaust air routing of fans or ventilation systems.
Suitable for flat roofs.

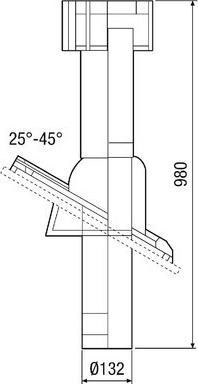

Suitable for pitched roofs from 25° to 45°.
Material: Roof penetration in polypropylene.
Roof tiles for pitched roofs in polyethylene, exception DP 125 TB in lead.
Roof tiles for flat roofs in aluminum.
No static pressure loss.
With condensate drainage.
Reductions must be provided on-site.
The use of the DP roof tile is necessary.
The use of the fastening clamp type BS for wind pressure-safe mounting on the roof is recommended.

For flat roof construction:
For warm roofs, order 2 roof tiles DP ... A.
For cold roofs, order only 1 roof tile DP ... A.

Article: DP 125 TB
Air direction: Supply and exhaust
Material: Lead
Color: Terracotta / Lead
Weight: 2.7 kg
Weight with packaging: 3.28 kg
Nominal diameter: 125 mm
Width: 520 mm
Height: 210 mm
Depth: 350 mm
Width with packaging: 520 mm
Height with packaging: 170 mm
Depth with packaging: 350 mm
EAN: 4012799923787.
