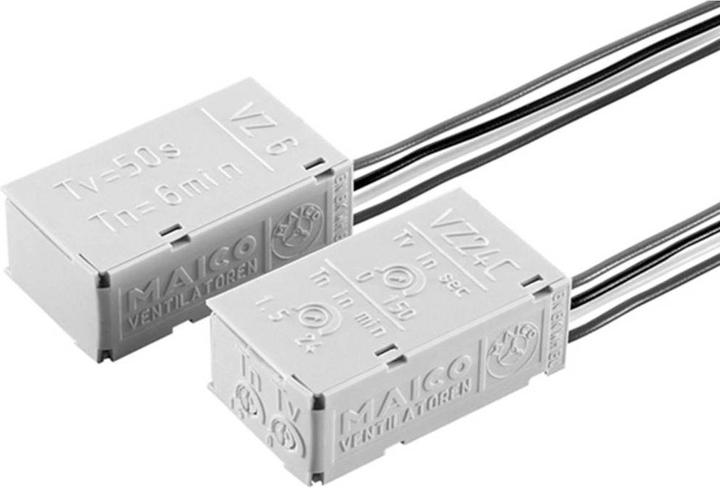

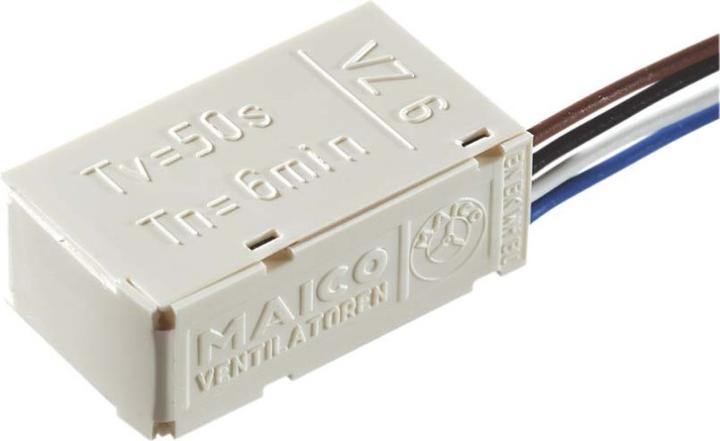

Maico Delay Timer Switch VZ 6

Manufacturer: Maico
Designation: Delay Timer Switch 50s, 6 Min. Run-On
Type: VZ 6
Electrical Connection Type: other
Complete Device with Base: no
Plug-On for Contactor: no
Delayed Response Function: yes
Delayed Release Function: yes
Switch-On Pulsing Function: no
Switch-Off Pulsing Function: no
Star/Delta Function: no
Pulse Shaping Function: no
Blinking Function Starting with Pause, Fixed Time: no
Blinking Function Starting with Pulse, Fixed Time: no
Pulsing Function Starting with Pause, Variable: no
Pulsing Function Starting with Pulse, Variable: no
Time Range: 0..360 s
Remote Control Possible: no
Suitable as Remote Control: no
Rated Control Supply Voltage Us at AC 50 Hz: 0..230 V
Rated Control Supply Voltage Us at AC 60 Hz: 0..230 V
Type of Voltage for Actuation: AC
Number of Outputs, Delayed, Normally Open: 1
Outputs, Switchable Delayed/Non-Delayed: no
With Semiconductor Output: no
Width: 20 mm
Height: 13 mm
Depth: 35 mm

Additional Details:
The delay timer switch controls the switch-on delay and run-on time of fans. Actuation is done via standard switches. Interference-resistant according to EN 61000-4-5 (at 1000 V to 4000 V). Additional interference suppression measures may be required (L-, C-, or RC-elements, protection diodes, varistors).

Article: VZ 6
Rated Voltage: 230 V
Mains Frequency: 50 Hz / 60 Hz
Maximum Load: 1.25 A
Protection Class: IP 40
Weight: 0.01 kg
Weight with Packaging: 0.02 kg
Ambient Temperature: 0 °C to 50 °C
Run-On Time: 6 min
Switch-On Delay: 50 s
EAN: 4012799578208.
