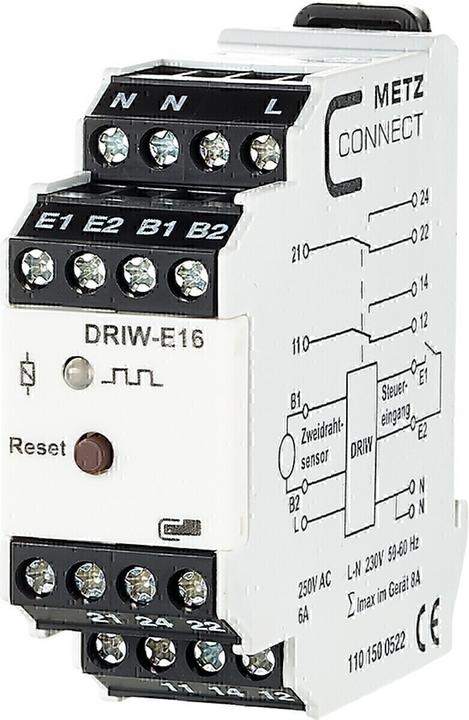

Metz Connect Speed Monitoring DRIW-E16 230VAC 22.5

Manufacturer: Metz Connect
Description: Speed Monitoring
Type: DRIW-E16 230VAC 22.5
Electrical connection type: Screw connection
Rated control supply voltage Us at AC 50 Hz: 230 V
Voltage type for actuation: AC
With removable terminals: no
Input evaluation: single-channel
Speed monitoring function: yes
Standstill monitoring function: yes
Operating frequency: 2..70 Hz
With feedback circuit: no
Suitable for safety functions: no
SIL according to IEC 61508: none
With approval for BG BIA: no
With UL approval: no
Width: 22.5 mm
Height: 60 mm
Depth: 60 mm

The speed and belt monitoring device is used to monitor rotational movement (under-speed) on motor or belt-driven shafts. Inductive proximity switches are used to detect the speed. The pulse generation at the sensor occurs contactless through running switch cams, gears, segment discs, metallic signal flags, or similar.

When the operating voltage is applied, the relay pulls in. The monitoring function is activated at terminals E1 and E2 via the power contactor of the drive after the start-up bypass period has elapsed. If the drive falls below the cut-off speed, the relay drops out. The fault message of the speed and belt monitoring device can be reset by resetting or turning off the operating voltage.

EAN: 4250184120292.
