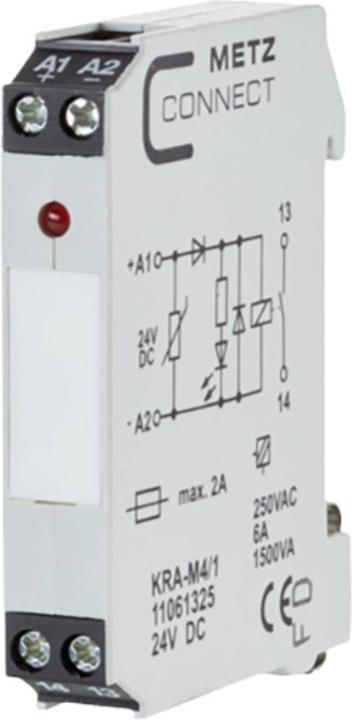

Metz Connect Coupling Module KRA-M4/1 24DC

Manufacturer: Metz Connect
Designation: Coupling Module 1S
Type: KRA-M4/1 24DC
Electrical connection type: Screw connection
Complete device with base: yes
With removable terminals: no
With LED display: yes
Rated control supply voltage Us at DC: 24 V
Voltage type for operation: DC
Drive, polarity: polarized
Switching behavior of the drive: monostable
Number of contacts as normally open: 1
Type of switching contact: Single contact
With forced-guided contacts: no
Material of contact insert: other
Material of contact: other
Material of contact coating: other
Voltage type of operating voltage: DC
Operating voltage at DC: 24 V
Rated current: 6 A
Max. inrush current: 8 A
Protection class (IP): IP20
Width: 12.2 mm
Height: 61.4 mm
Depth: 26.2 mm

Metz Connect Coupling Module KRA-M4/1 24DC: additional details
Coupling modules ensure safe potential separation between logic and load. Connection with screw terminals, closed, compact design, integrated protection circuitry, safe separation.
