Metz Connect KRS-E08 HR3. Product color: White, Operating temperature range: -10
9 pieces in stock at supplier
Product details

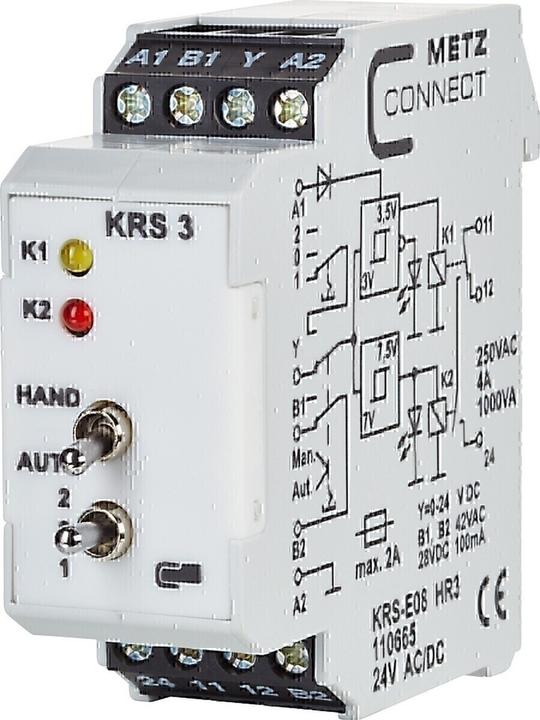

Metz Connect Interface Module KRS-E08 HR3 24ACDC
Manufacturer: Metz Connect
Designation: Interface Module 1W
Type: KRS-E08 HR3 24ACDC
Electrical connection type: Screw connection
With removable terminals: no
Rated current: 4 A
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: AC/DC
Drive, polarity: polarized
Switching behavior of the drive: monostable
Number of contacts as changeover: 1
With forced-guided contacts: no
Type of switching contact: Single contact
Complete device with base: yes
With LED display: yes
Material of contact coating: other
Material of contact insert: other
Material of contact: other
Protection class (IP): IP20
Width: 22.5 mm
Height: 61.3 mm
Depth: 60 mm
The threshold switch is used for controlling aggregates, pumps, fans, burners, etc. Once the input voltage reaches the switching threshold, the relay activates. If the input voltage falls below the cut-off threshold, the relay deactivates. The module is designed for two-stage control via an analog 0 to 10 V DC control signal. Connection with screw terminals, control signal 0 V DC = Stage 1 active, control signal 5 V DC = No stage active (OFF), control signal 10 V DC = Stage 2 active, with manual control level.
Relay type | Time relay |
input voltage | 24 V |
Electric current output | 4 A |
Output current type | AC/DC |
Item number | 21169132 |
Manufacturer | Metz Connect |
Category | Relays |
Manufacturer no. | 110665 |
Release date | 3.5.2021 |
External links |
Relay type | Time relay |
input voltage | 24 V |
Electric current output | 4 A |
Output current type | AC/DC |
Switching function | Changer |
Number of openers | 0x |
Number of closers | 0x |
Country of origin | China |
CO₂ emissions | 29,26 kg |
Climate contribution | EUR 0,74 |
Scope of delivery | 1 pc |
Length | 60 mm |
Width | 22.50 mm |
Height | 61.30 mm |
Weight | 70 g |
