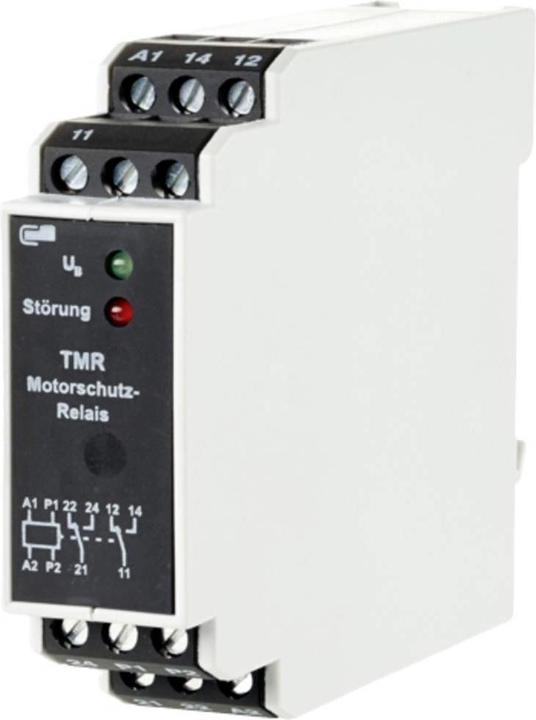

Metz Connect Motor Protection Relay TMR-E12 oFS 2W 230AC

Manufacturer: Metz Connect
Designation: Motor protection relay without fault memory
Type: TMR-E12 oFS 2W 230AC
Connection type: Screw connection
With removable terminals: no
Type of supply voltage: AC
Supply voltage at AC 50 Hz: 230 V
Number of measuring circuits: 1
Fault memory possible: no
External reset possible: no
Number of contacts as changeover: 2
Type of operating voltage: AC
Width: 22.5 mm
Height: 75 mm
Depth: 100 mm

The thermistor relay is used as a protective relay for motors against thermal overload (excessive heating). This heating can occur due to mechanical overload on the shaft or when the motor operates with unacceptable voltages. A thermistor (PTC) is used as a sensor, which is ideally placed on the part of the motor that heats up the most during overload (e.g., integrated into the motor winding). The device can also be used with motors that have an integrated thermal switch.
Variant: 230 V AC, 2 changeover contacts
EAN: 4250184121282.
