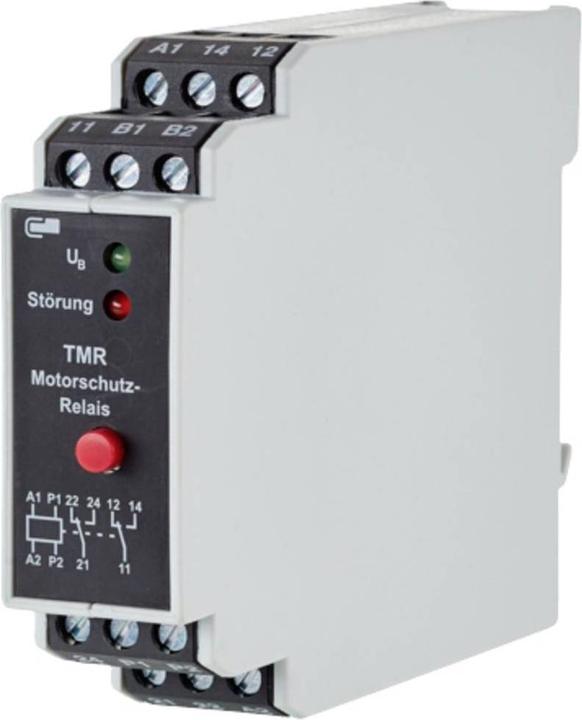

Metz Connect Motor Protection Relay TMR-E12 mFS 2W 24UC

Manufacturer: Metz Connect
Description: Motor protection relay with fault memory
Type: TMR-E12 mFS 2W 24UC
Electrical connection type: Screw connection
With removable terminals: no
Voltage type of supply voltage: AC/DC
Supply voltage at AC 50 Hz: 24 V
Supply voltage at DC: 24 V
Number of measuring circuits: 1
Fault memory possible: yes
External reset possible: yes
Number of contacts as changeover: 2
Voltage type of operating voltage: AC/DC
Width: 22.5 mm
Height: 75 mm
Depth: 100 mm

The thermistor relay is used as a protection relay for motors against thermal overload (excessive heating). This heating can occur due to mechanical overload on the shaft or when operating the motor with inadmissible voltages. A thermistor (PTC) is used as a sensor, which is placed as close as possible to the part of the motor that heats up the most during overload (e.g., integrated into the motor winding). The device can also be used with motors that have an integrated thermal switch. It features an integrated fault memory with a front-side reset button or the connection of an external reset button (terminals B1 - B2). Variant: 24 V AC/DC, 2 changeover contacts, EAN: 4250184118695.
