Niedax NIE HDUF50/200E3 Hanging Handle Double U-Profile 50X22x200mm Stainless Steel
Product details

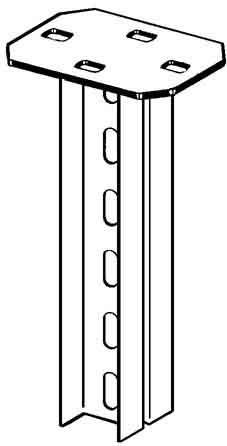

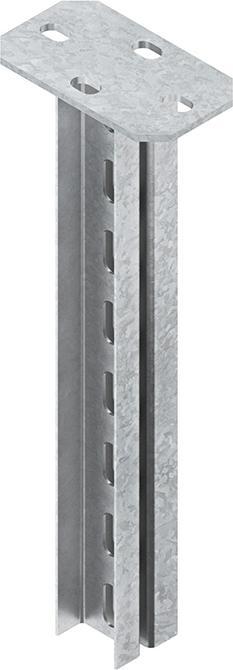

Hanging pole, double U-profile with welded head plate, system HDUF 50/... E3, for brackets for single-sided and double-sided installation. Double-sided arrangement of the brackets is only possible with a height offset. For static reasons and to allow for a smooth fitting of the protective cover, the bracket must be mounted at a distance of 50 mm (from the bottom edge of the bracket to the end of the hanging pole) above the end of the hanging pole. Note: Limited space available for cable tray installation (length of the hanging pole minus the height of the bracket)!
For brackets:
KTUM... E3 = 400 mm length
KTU... E3 = 600 mm length

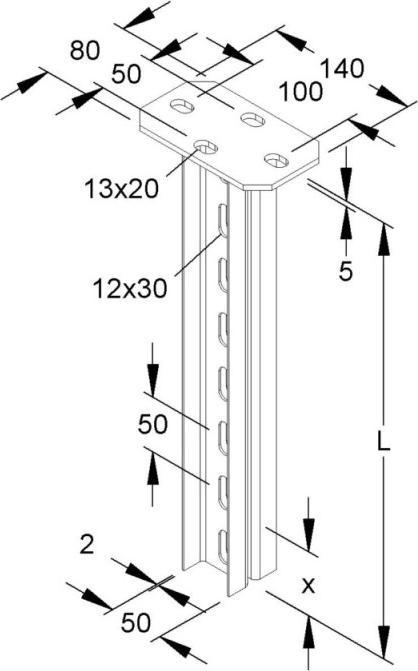

Dimensions (approximate):
Head plate L x W x T: 140 x 80 x 5 mm
Mounting hole: 13 x 20 mm
Center distance: 100 mm
U-profile: 50 x 22 x 2 mm
Profile hole, single-row: 12 x 30 mm
Center distance: 50 mm
Total length L: 205 mm
Material: Stainless steel, material number 1.4301.
Item number | 32123265 |
Manufacturer | Niedax |
Category | Electronics supplies + Casing |
Manufacturer no. | HDUF50/200E3 |
Release date | 16.11.2022 |
Manufacturer Type | 200 E3, HDUF 50 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1 |
Length | 205 mm |
Width | 80 mm |
Height | 50 mm |
Weight | 894.10 g |
