Suspension arm, 3-sided continuously perforated U-profile with welded head plate, System HU 6040, for brackets for single, double, and triple-sided installation. To prevent deformation of the suspension arm profile during the installation of brackets, the suspension arm spacer profile HDS 60.40 E3 with hexagon screw must be taken into account for static reasons. When attaching the bracket to the suspension arm profile on one side, the closed side of the bracket should preferably be aligned with the profile web of the suspension arm. For static reasons and to allow for easy placement of the protective cap, the bracket must be installed 50 mm (from the bottom edge of the bracket to the end of the suspension arm) above the end of the suspension arm. VDE certified!

For brackets: KTAM E3, KTA E3, KTAS E3

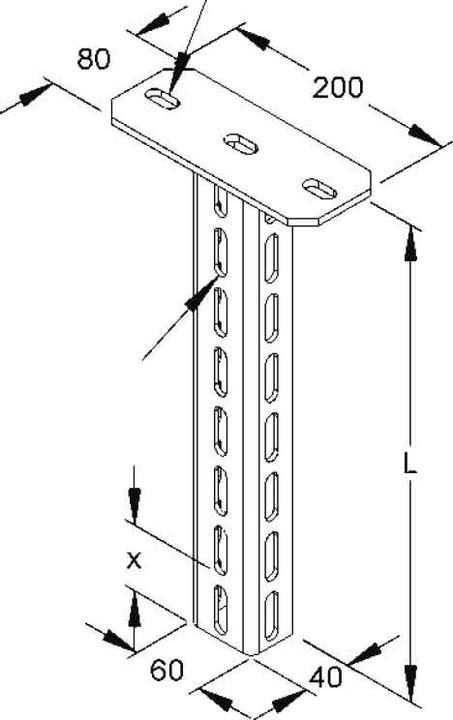

Dimensions (approx. measurements):
Head plate L x W x t: 200 x 80 x 6 mm
Mounting hole: 13 x 28 mm
Center distance: 152 mm
U-profile: 40 x 60 x 40 mm
Material thickness t: 4 mm
Three-sided profile perforation, single row: 13 x 40 mm
Center distance: 50 mm
Total length L: 606 mm
Material: Stainless steel, material no. 1.4301, AISI 304.
