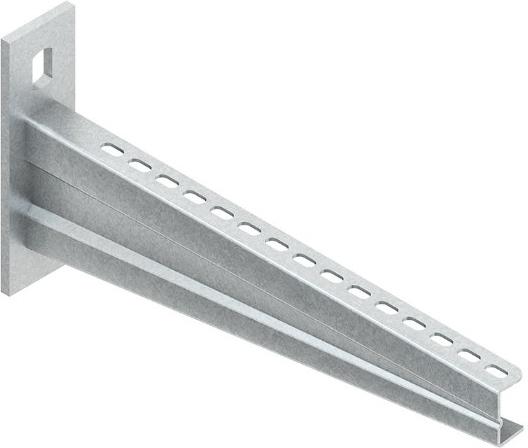

Niedax Wall Bracket KTASS 200

Manufacturer: Niedax
Description: Wall Bracket
Type: KTASS 200
Length: 240 mm
Width: 28 mm
Height: 133 mm
Suitable for cable tray system width: 50 - 200 mm
Design: Wall Bracket
Angle: 90 °
Load capacity: 10 kN
Suitable for functional integrity: no
Material: Steel
Material quality: other
Surface protection: hot-dip galvanized

Niedax Wall Bracket KTASS 200: additional details
Wall bracket, very heavy-duty design, for wall mounting. Required mounting accessories for cable trays/ladders and wide-span cable trays/ladders must be ordered separately. The load capacity specifications apply only with sufficient anchoring to the supporting substrate (min. concrete C20/25) and using the dowel DAZ 16X25 in uncracked concrete, considering the approval document ETA-18/0542. In any case, the introduction of loads into the structure must be coordinated with the construction planning or site management.

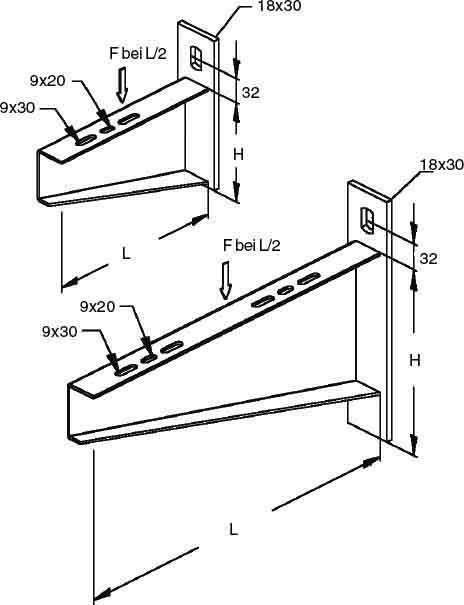

Dimensions (approx. measurements)
Support height H: 83 mm
Support length L: 230 mm
Load capacity F at L/2: 10 kN tested in the system, applies to the bracket regardless of anchoring.
Load capacity F2 at L/2: 10 kN tested in the system, applies to central load introduction and in conjunction with dowel DAZ 16X25. For differing load introductions (asymmetrical load introduction), a formula for calculating load capacity must be applied; please contact us if needed.

Material of the bracket: Steel, hot-dip galvanized according to DIN EN ISO 1461, EAN: 4013339189212.
