Niedax Outlet Funnel Set RTL 85.200

Manufacturer: Niedax
Description: Outlet Funnel Set
Type: RTL 85.200
Channel Width in Horizontal Direction: 200 mm
Channel Width in Vertical Direction: 200 mm
Height of Side Wall: 85 mm
Wide Span Version: No
Suitable for Function Maintenance: No
Material: Steel
Stainless Steel, Pickled: No
Material Quality: Other
Surface Protection: Strip Galvanized

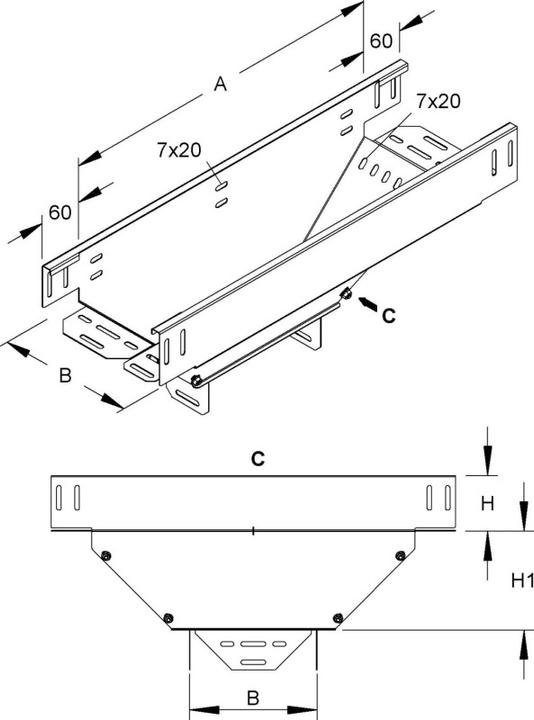

The Niedax Outlet Funnel Set RTL 85.200 consists of a longitudinally arranged, two-part outlet funnel with unperforated side beams and connector holes for connection. It features integrated joint connectors for the vertical branch along the main direction and includes proportional fastening accessories. The main body of the outlet funnel is hung onto the rolled longitudinal edges of the already pre-assembled cable trays and is bolted to them. After the cables are laid, the front part is attached to the main body and bolted to the cable trays. The advantage of the funnel is that the threading effort for the cables is eliminated.

Design: Continuous channel size = outgoing channel size for cable trays: 85 mm
Edge Height: Unmounted
Dimensions (approx. measurements) H x W (inside): 85 x 202 mm
Installation Dimension A for the continuous channel: 500 mm
Material: Steel, strip galvanized according to DIN EN 10346
EAN: 4013339793525.
