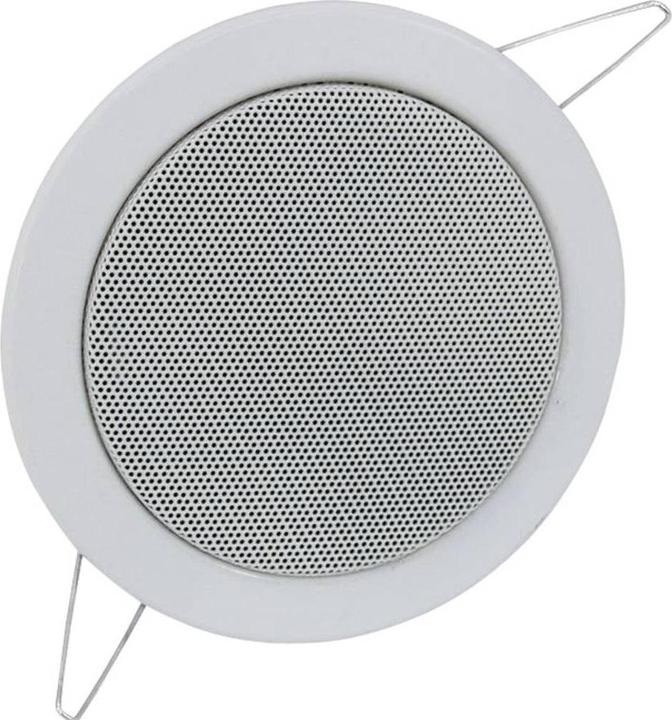

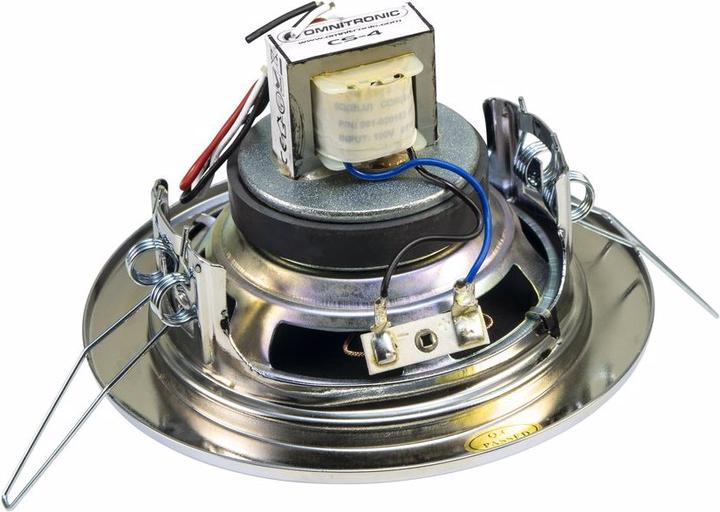

The CS-4 in-ceiling speaker from Omnitronic is a versatile 2-way speaker that is ideal for installation in ceilings. With a diameter of 10 cm and a rated power of 6 watts RMS, this speaker provides clear sound reproduction for speech and background music in indoor settings. The CS-4 is equipped with a 100V transformer that allows for two power taps, making it particularly flexible for various applications. Installation is straightforward and similar to that of common recessed lights, facilitating setup in different environments. The speaker is available with various covers featuring a metal grille, allowing for customization to match the room's design. With a frequency range of 100 to 20,000 Hz and a maximum sound level of 89 dB, the CS-4 delivers impressive sound quality suitable for both private and commercial use.
Type | OnWall Speaker |
Stack depth | 80 mm |
Item number | 12859180 |
Manufacturer | Omnitronic |
Category | Built-in speakers |
Manufacturer no. | 80710208 |
Release date | 6.3.2020 |
Sales unit | 1 pcs. |
Type | OnWall Speaker |
Loudspeaker construction | Passive speakers |
Application range | Built-in |
Colour | White |
Exact colour description | White |
Material group | Metal |
Material | Metal |
Frequency range | 100 - 20000 Hz |
placement | Duvet |
form factor | Round |
Stack depth | 80 mm |
Power | 6 W |
Maximum load | 6 W |
Max. noise level | 91 dB |
Speaker principle | 2-way |
Nominal power | 3 W |
Power handling capacity (max.) | 12 W |
Diameter | 100 mm |
Tweeter type | Electrostat |
Material | Nickel metal hydride (NiMH) |
Number | 1 x |
Diameter | 100 mm |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 1000 mm |
Height | 80 mm |
Depth | 80 mm |
Weight | 0.70 kg |
