PCE Instruments Strommessumformer

Price in EUR including VAT
Ratings
BrandMore from PCE Instruments
Delivered between Thu, 23.4. and Thu, 30.4.
6 items ordered
free shipping

Product details

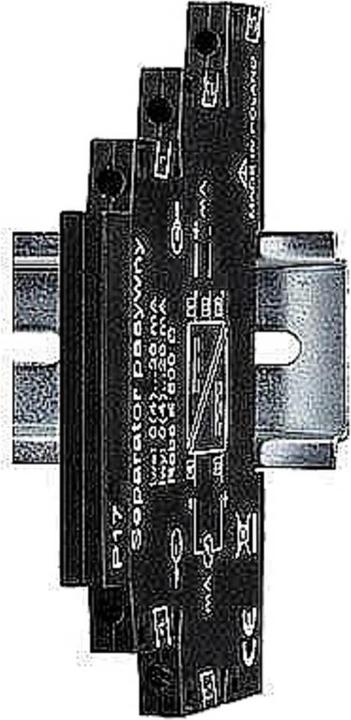

PCE Instruments Isolating Converter PCE-P17I

Manufacturer: PCE Instruments
Designation: PCE Instruments Isolating Converter PCE-P17I
Type: Measuring Devices
Country of Origin: PL
Operating Conditions: -20 ... 65 °C, 0 ... 95 % r. H.
Storage Conditions: -20 ... 65 °C, 0 ... 95 % r. H.

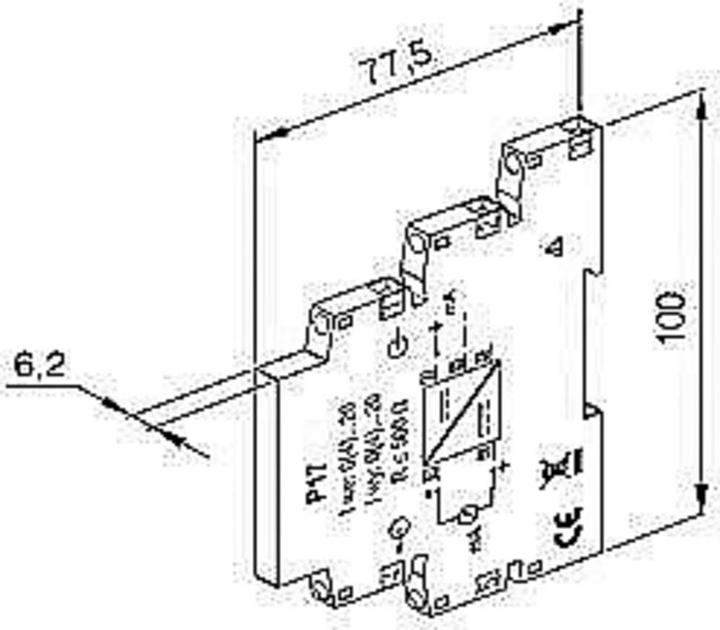

Dimensions: Mounting width 6.2 mm
Weight: 80 g

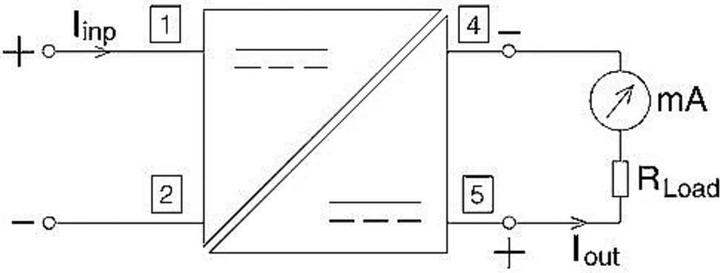

The isolating converter is used when signals need to be galvanically separated. For example, it separates connected grounds. Often, measuring converters or transducers without an isolating converter have their grounds connected, which can lead to measurement errors due to signal overlaps. The isolating converter prevents this issue from occurring. It is frequently used to utilize both current signals from the PCE-P18. In combination, the isolating converter can then transmit the measurement signals to the PCE-KD5, where the galvanically separated signals are processed cleanly.

Highlights:

  • Galvanic isolation of 0 ... 20 mA signals
  • Powered via current loop
  • Compact installation width
  • Mountable on DIN rail
  • Filters high-frequency interference signals
  • Simple design

Scope of Delivery:
1 x Isolating Converter PCE-PG17I
1 x User Manual
EAN: 4250348710574.
