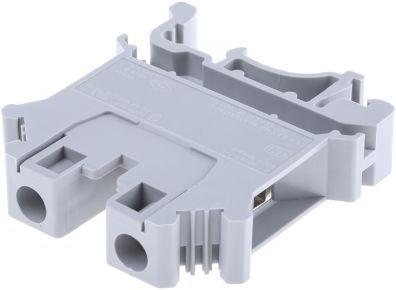

Phoenix Contact Grey terminal,10sq.mm 76A
More than 10 items in stock at supplier
Product details
Series: UK
Wire size: 20 → 6 AWG
Wire gauge: 0.5 → 10mm²
Color: Gray
Rated current: 76A
Number of levels: Single
Connection type: Screws
Operating voltage: 800 V
Hazardous area approval: ATEX
Universal and protective conductor terminal blocks. Terminals for "G" and top hat rails. Uniform accessories. Protective conductor and disconnect terminal blocks with identical contours.
Item number | 9910336 |
Manufacturer | Phoenix Contact |
Category | Cables + Plugs |
Manufacturer no. | 3005073 |
Release date | 16.10.2018 |
External links |
Colour | Grey |
Material group | Plastic |
Material | Thermoplastic resin |
Max. temperature | 110 °C |
Min. temperature | -60 °C |
mounting type | DIN top-hat rail |
Manufacturer Type | UK 10 N |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Scope of delivery | Universal terminal 0.5-16qmm B=10.2 gr |
Length | 4.73 cm |
Width | 1.02 cm |
Height | 4.25 cm |
Weight | 20 g |
