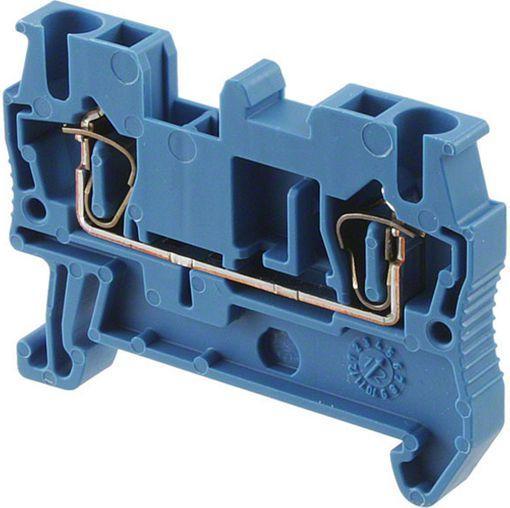

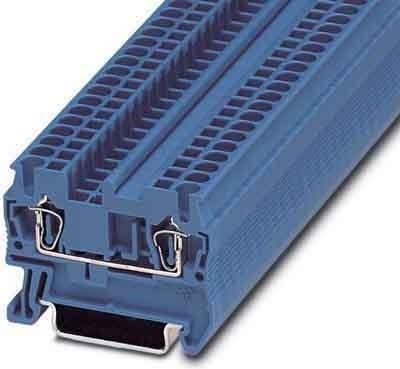

The ST 2.5 BU spring clamp from Phoenix Contact is a high-quality terminal block designed for a wide range of electrical applications. It offers a rated voltage of 800 V and a rated current of 24 A, making it a reliable choice for connecting electrical wires. The terminal is equipped with a spring connection that allows for easy and secure connections. It supports various conductor cross-sections from 0.08 mm² to 4 mm² and is suitable for both stranded and solid conductors. Installation is done on a DIN rail, facilitating the setup in control cabinets. With a width of 5.2 mm, it is compact and space-saving while also withstanding a high operating temperature range of -60 °C to 110 °C. This terminal is ideal for applications that require high reliability and flexibility.

• Spring connection for easy and secure connection
• Supports conductor cross-sections from 0.08 mm² to 4 mm²
• Suitable for stranded and solid conductors
• Mounting on TH35 DIN rail for easy installation
• Operating temperature range of -60 °C to 110 °C.
