Area: PSEN
Series: PSENhinge
Locking Type: Hinge
Contact Configuration: 2 Normally Open
Cable Entry Size: M12
Cable Entry: M12
Minimum Operating Temperature: -25°C
Maximum Operating Temperature: +70°C

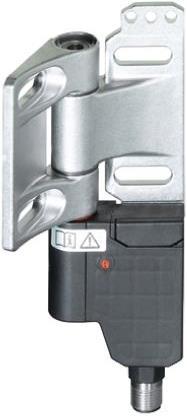

BG / BG / BG, CCSAUS B300. VDE 0660 T100, DIN EN 60947-1, IEC 60947-1, VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1. The PSENhinge offers great flexibility in installation, connection, and adjustment, and is suitable for applications with strict safety requirements when combined with Pilz control systems. The hinge switch is tamper-proof as it is directly integrated into the protective device. The PSENhinge can be used on rotating and hinged safety gates as well as flaps, and can be mounted on the right or left to provide optimal cable routing with a switching point between 0° and 270°. The integrated precision adjustment system of the hinge switch allows the user to readjust the switching point with a replacement kit even after configuration when the system is expanded. A safe, complete solution for rotating protective devices with hinges, including hinge and safety switch. With an IP67 protection rating, it can be used in areas with strict hygiene regulations or heavy contamination. Tamper-proof and space-saving, directly integrated into the protective device. The switching point can be freely adjusted from 0° to 270° and changed later. Slot mounting for installation on profiles. Easy readjustment via an integrated precision adjustment system. Systems can be mounted on the right or left. Low maintenance effort. Plastic housing.
