Housing material: Die-cast aluminum
Dimensions (outside): 57 x 75 x 80 mm
Length (outside): 57 mm
Width (outside): 75 mm
Height (outside): 80 mm
IP protection class: IP66
Color: Gray
Cover color: Gray
Series: GA
Shielded: No
Weight: 270 g

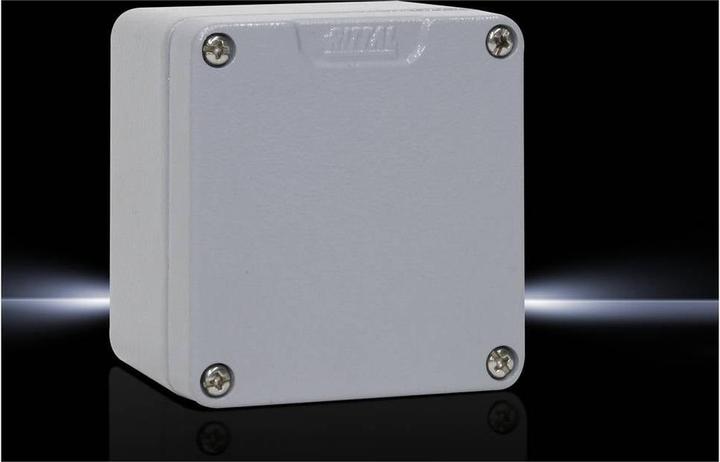

These products from Rittal are empty enclosures for low-voltage switchgear and controlgear assemblies with a maximum rated voltage of 1000 V AC or 1500 V DC. The enclosures are typically used for housing instrumentation and control systems. The GA series enclosures are made of die-cast aluminum with a gray (RAL 7001) powder coating. They are provided with holes and tapped holes for mounting support rails or mounting plates. The cover can be secured with captive screws for maximum safety. With the integrated seal, a high IP66 protection rating is provided. The neoprene cord seal is resistant to oil, gasoline, and chemicals. The housing offers several options for wall mounting, either with additional wall brackets or directly through the provided opening outside the seal.

Features and benefits:

• Housing made of die-cast aluminum
• IP66 protection (protection against strong jets of water) and IK08 impact resistance
• Surface with gray (RAL 7001) powder coating
• Oil, gasoline, and chemical resistant neoprene cord seal

Frequently asked questions:
What does "IP" mean?
IP rating is used to determine the effectiveness of protection of electrical enclosures against ingress of foreign objects (tools, dirt, etc.) and moisture.

What does "IK" mean?
The IK rating represents the degree of protection of enclosures for electrical equipment with respect to mechanical shock.

What is included in the delivery?

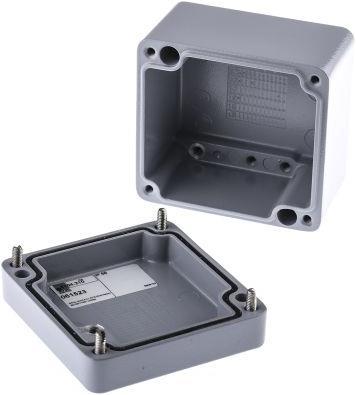

• Die-cast aluminum enclosure
• Cover with clamping screws
• Bag with accessories
• Safety instructions.
