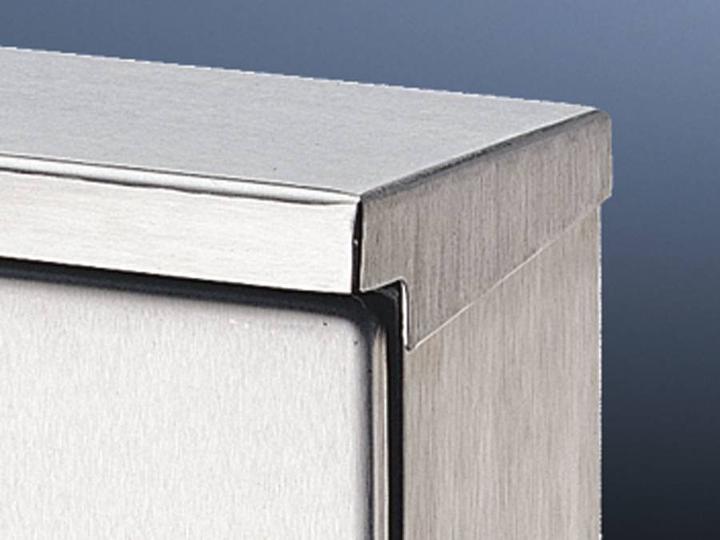

Rain cover
Length: 611 mm
Width: 235 mm
Height: 25 mm
Dimensions: 611 x 235 x 25 mm
Material: Stainless steel
For use with: AE Compact Enclosure

The Rittal AE series is a compact stainless steel enclosure with PU sealing foamed all around for IP66 protection according to IEC 60529. Protection class: IP66 according to IEC 60529, NEMA 4x, and IK08. The enclosure and flap are made of stainless steel 1.4301 (AISI 304). Door opening angle is approximately 130°.

Housing cover is available separately.
Order No. 457-1067 is for enclosure size (WxD) 300 x 210 mm.
Order No. 457-1073 is for enclosure size (WxD) 500 x 210 mm.
Order No. 457-1023 is for enclosure size (WxD) 200 x 155 mm.
Order No. 457-1045 is for enclosure size (WxD) 380 x 210 mm.

Black plastic handles are sold separately.
Order No. 457-1095 is a handle with lock cylinder insert, lock No. 3524 E (cannot be used with Order No. 784-6171).
Order No. 860-4506 is a handle with housing without lock cylinder insert.
Order No. 860-4524 is a handle with housing and lock cylinder insert, lock No. 3524 E.
