Secondary rated voltage = 2 x 9V ac
Nominal power = 30VA
Primary rated voltage = 115 → 230V ac
Number of outputs = 2
Length = 68mm
Width = 57mm
Depth = 35mm
Dimensions = 68 x 57 x 35mm
Weight = 530g
Mounting type = PCB mounting
Temperature max = +130°C
Operating frequency min. = 50Hz
Operating frequency max. = 60Hz

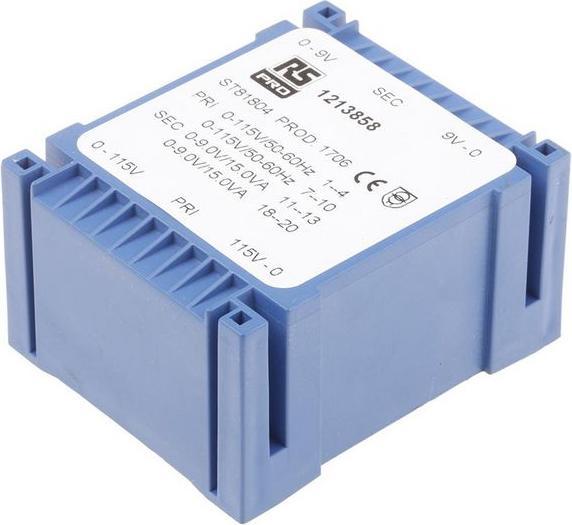

RS Pro PCB Flat Transformers. RS Pro PCB flat transformers are low voltage transformers with a double 50/60 Hz primary winding with 115 V ac. These PCB transformers are compact and flat, have independent secondary windings for series/parallel connection for output voltage and output current options. The transformers are 100% electrically and flash tested, have dual compartment coils, high efficiency and low temperature rise, low winding capacitance and low radiated noise.
