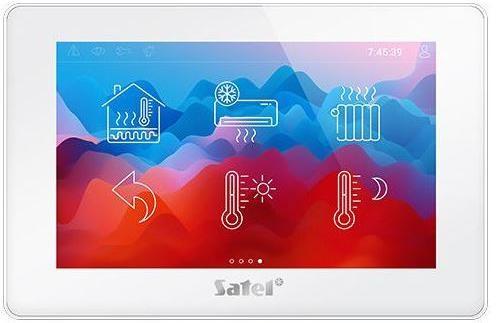

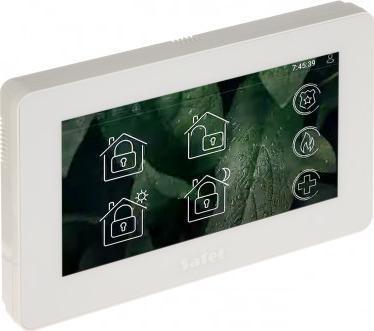

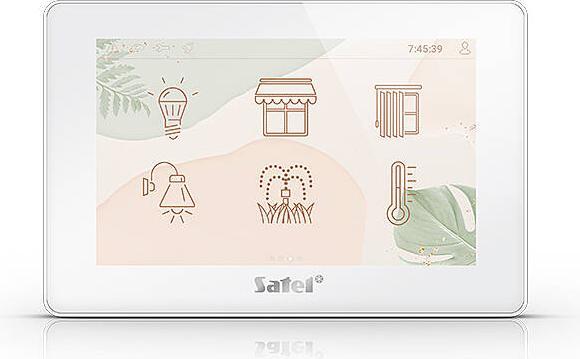

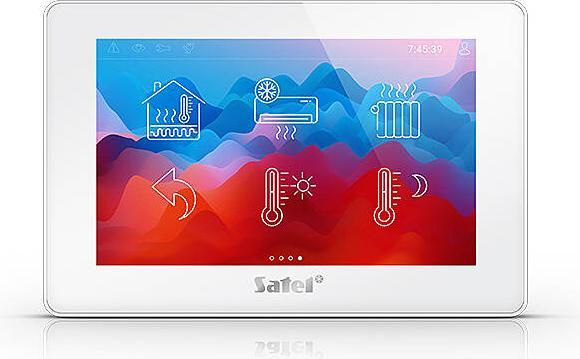

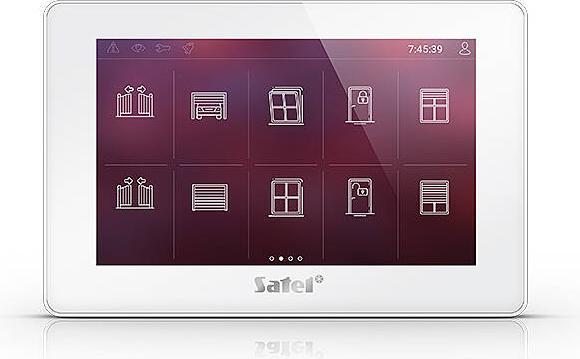

The INT-TSH2-W touch keypad has an attractive appearance and facilitates the daily maintenance of modern alarm systems and home automation with the INTEGRA, INTEGRA Plus, and VERSA control panels.

Thanks to the MACRO functions, the entire sequence of actions can be carried out with the aid of a command.

Support: INTEGRA, INTEGRA Plus, VERSA

Selected functions:

• Large and clear backlit LCD display showing detailed system status information.
• 7" capacitive touch screen, 1024 x 600 pixels.
• Readable and clear graphic interface.
• Keyboard operating status display.
• 2 inputs - INTEGRA, INTEGRA Plus only.
• Supported configurations: EOL, 2EOL, 3EOL.
• MACRO functions that allow you to perform action sequences at the touch of a button.

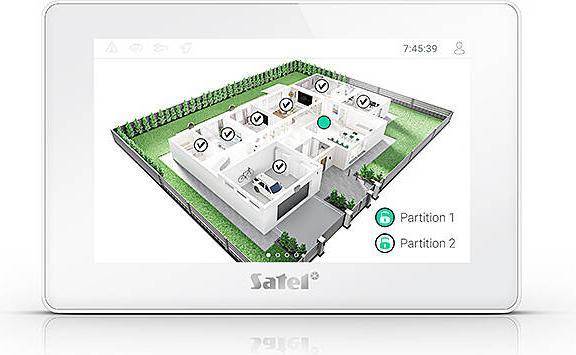

• Easy maintenance of multi-zone systems.

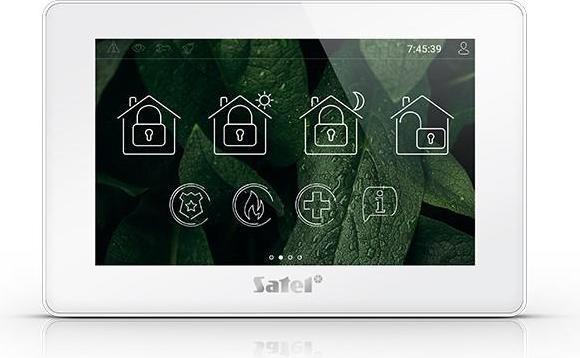

• Warning signals: ATTACK, FIRE, HELP, called up via keyboard.
• Audible alarm for selected system events.
• Signalling of a lost connection with the control panel.
• Sabotage detection - opening of the housing, tearing off from the base.
• Memory card slot - microSD.

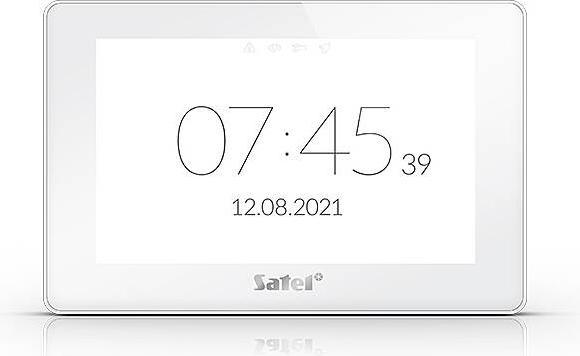

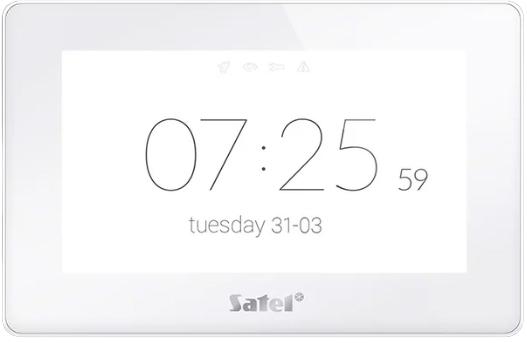

• Screensaver with calendar and clock function or picture frame.

Power supply: 12 V direct current

Current consumption: max. 450mA

Colour: White

Operating temperature: -10°C to 55°C

Weight: 0.38 kg

Dimensions: 196 x 129 x 22 mm

Manufacturer / Brand: SATEL

Warranty: 2 years.
