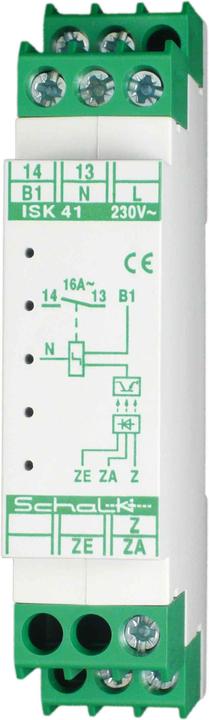

Schalk Central Pulse Switch ISK 41

Manufacturer: Schalk
Designation: Central Pulse Switch
Type: ISK 41
Function: electronic for central control
Mounting type: DIN rail
Width in division units: 1
Installation depth: 55 mm
Number of contacts as normally open: 1
Control voltage 1: 207..253 V
Control voltage type 1: AC
Frequency of control voltage 1: 60..50 Hz
Control voltage 2: 8..230 V
Control voltage type 2: AC/DC
Rated switching current: 16 A
Supply voltage: 207..253 V
Voltage type of supply voltage: AC
Max. fluorescent lamp load (parallel compensated): 250 VA
Suitable for manual operation: yes

Schalk Central Pulse Switch ISK 41: further details
In electrical installations with multiple sub-distributions and residual current circuit breakers, an economical central ON-OFF control can be established using the specially designed switching devices ISK 41 and ISK 42. The central control inputs are galvanically isolated from the supply side inputs and outputs by optocouplers. This allows ISK 41 and ISK 42 to be connected without decoupling relays between different networks, RCDs, or potentials, unlike conventional pulse switches with central control.

ISK 41: 1 normally open contact 230V AC 16A, potential-free, dimensions: 18x55 mm, 230V AC - 1S pf 16A, EAN: 4046929601030.
