Schalk SCHAL MGR 4 motor group relay for 4 motors (REB), 230V AC

Price in EUR including VAT
Ratings
BrandMore from Schalk
Delivered between Fri, 17.10. and Tue, 21.10.
free shipping

Product details

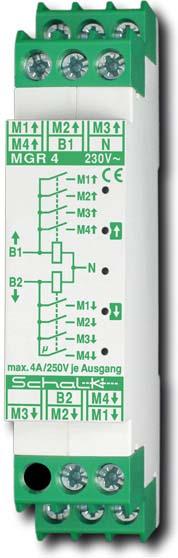

Schalk Motor Group Relay MGR 4

Manufacturer: Schalk
Designation: Motor group relay for 4 motors, 230VAC
Type: MGR 4
Mounting type: DIN rail
Central input: yes
Secondary input: yes
Number of connectable motors: 4
Nominal voltage: 230 V
Frequency: 50 Hz
Rated current: 4 A

The MGR 4 motor group relay enables the electrical parallel connection of up to 4 roller shutter or blind motors to a single control unit. This allows for a simple and cost-effective way to combine multiple drives into a single operable group without the need for a separate control for each individual drive. The MGR 4 (DIN rail version) features 4 complete up/down outputs for the direct connection of 4 motors. A mutual interlocking of the outputs ensures that only one direction of operation can be switched to the motors at any time.

Also available as MGR U2 (flush-mounted version, for 2 motors) and MGR 2 (DIN rail version, for 2 motors).

Specifications: 8 normally open contacts 4A / 250V AC, dimensions: 18x55mm, EAN: 4046929401159.

Key specifications

input voltage
230 V
Scope of delivery
250V AC, 8 Normally open contact 4A
Output voltage
250 V
Output current type
AC
Electric current output
4 A
Relay type
Installation relay
Item number
32096815

General information

Manufacturer
Schalk
Category
Relays
Manufacturer no.
MGR409
Release date
16.11.2022

Relay properties

Relay type
Installation relay
input voltage
230 V
Output voltage
250 V
Electric current output
4 A
Output current type
AC
Switching function
Changer
Number of closers
8 x
Manufacturer Type
MGR 4

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
250V AC, 8 Normally open contact 4A

Product dimensions

Length
18 mm
Width
18 mm
Height
55 mm
