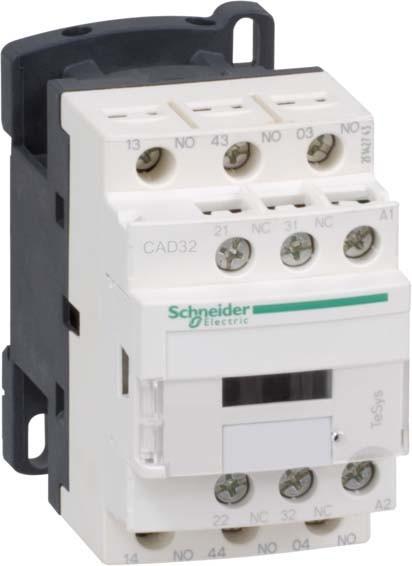

Schneider Electric auxiliary contactor CAD326GD
Manufacturer: Schneider Electric
Designation: Auxiliary contactor 3S, 2Ö, 125V DC
Type: CAD326GD
Rated control supply voltage Us at DC: 125 V
Voltage type for actuation: DC
Rated operating current Ie, 400 V: 10 A
Connection type auxiliary circuit: Other
Mounting type: DIN rail/screw
Interface: No
Number of auxiliary contacts as NC contacts: 2
Number of auxiliary contacts as NO contacts: 3
With LED indicator: No
Suitable for manual operation: No
Schneider Electric auxiliary contactor CAD326GD: further details
TeSys D auxiliary contactor for utilisation categories AC-15 to 690V and DC-13 to 440V. It has 5 contacts (3S + 2Ö), a 125V DC coil with an integrated overvoltage protection module, connection via ring cable lug screw terminals. For demanding applications with high operating speeds up to 10800 cycles/hour, it ensures high reliability and durability. It has multiple standards (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium conformity (RoHS/REACH).
input voltage | 125 V |
Scope of delivery | 125V DC coil with integrated overvoltage protection module, 3S + 2Ö, Connection via ring cable lugs screw terminals |
Output voltage | 125 V |
Output current type | AC/DC |
Electric current output | 10 A |
Relay type | Contactor relay |
Item number | 33589668 |
Relay type | Contactor relay |
input voltage | 125 V |
Output voltage | 125 V |
Electric current output | 10 A |
Output current type | AC/DC |
Switching function | Opener |
Number of openers | 2 x |
Number of closers | 3 x |
Manufacturer Type | CAD326GD |
Smart Home | Not compatible |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 125V DC coil with integrated overvoltage protection module, 3S + 2Ö, Connection via ring cable lugs screw terminals |
