Schneider Electric Energy management controller power quality EVCP300D5IP31
Product details

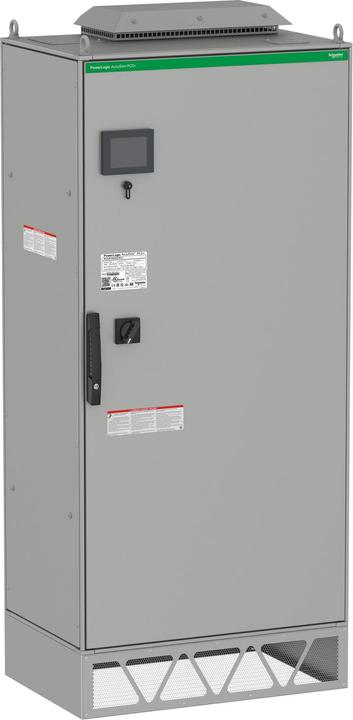

Active reactive power compensation from the AccuSine family, which contributes to the stabilization of electrical networks through rapid reactive power compensation and load balancing. It is specifically designed for demanding electrical conditions, heavy industrial applications, and critical environments. This version has an IP31 protection rating and can be connected to low-voltage networks with a voltage of 380 volts to 480 volts. The device is specified for a standard output current of 300 amperes. The housing is floor-standing, allows for cable entry from the top or bottom, and is delivered in RAL7035 light gray. This active reactive power compensation, which meets the aforementioned standards, is certified according to CE, UL, IBC 2015 AC156, EAC, and RCM. It complies with IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508, and IEEE 519-2014. Up to 10 units of different power ratings can be connected in parallel to achieve a maximum VAR supply of 2500 kvar per current transformer set, either leading or lagging. The external dimensions of the housing are 900 millimeters in width, 600 millimeters in depth, 2100 millimeters in height, and the product weight is 422 kg.
Item number | 33624905 |
Manufacturer | Schneider Electric |
Category | Home automation |
Manufacturer no. | EVCP300D5IP31 |
Release date | 17.5.2023 |
Application range | Indoor |
Manufacturer Type | EVCP300D5IP31 |
Electric current output | 359.83 A |
Power supply | Electrical connection |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | USA |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 |
Length | 600 mm |
Width | 800 mm |
Height | 1905 mm |
Product Safety |
