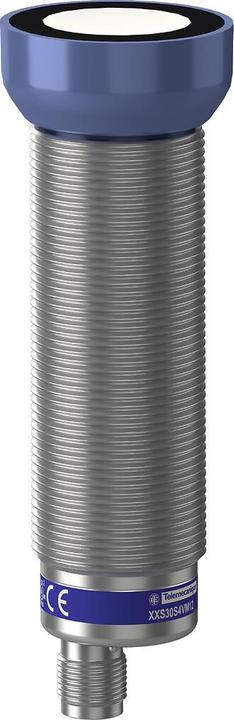

The Yageo M30 ultrasonic sensor with stainless steel housing 316L, SN=4M, 0-10V, M12 XXS30S4VM12 is a high-quality measuring instrument with a housing diameter of 30 mm. It is made of stainless steel 316L and features an M12 connector for easy connection to sockets. The sensor has a range of 4 m and an analog output with a voltage of 0 to 10 V. Its electrical connection is also made via the M12 connector. The blind zone is 420 mm, while the width of the sensor is 40 mm, the height is 30 mm, and the length is 74.7 mm. The adjustment method is of another type, and the measurement range is 4 m. The sensor operates on a supply voltage of 24 V. The relative repeatability is 0.1%, and the voltage type is DC. Synchronization is possible. The material of the active area of the sensor and the housing are made of other materials.

Features:

• Analog output type: 0 V ... 10 V
• Electrical connection type: M12 connector
• Blind zone: 420 mm
• Width of the sensor: 40 mm
• Height of the sensor: 30 mm
• Length of the sensor: 74.7 mm
• Diameter of the sensor: 30 mm
• Adjustment method: other
• Measurement range length: 4 m
• Ambient temperature: -25 °C
• Supply voltage: 24 V
• Relative repeatability: 0.1 %
• Voltage type: DC
• Synchronization possible: yes
• Material of the active area of the sensor: other
• Material of the housing: other.
