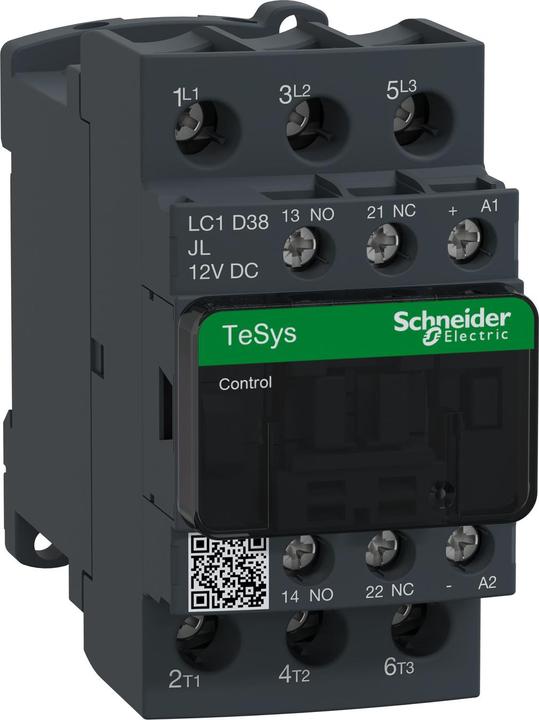

Schneider Electric power contactor LC1D38JL

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D38JL
Rated control supply voltage Us at DC: 12 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 50 A
Rated operational current Ie at AC-3, 400 V: 38 A
Rated operational power at AC-3, 400 V: 18.5 kW
Rated operational current Ie at AC-4, 400 V: 18 A
Rated operational power at AC-4, 400 V: 7.5 kW
Suitable for series installation: No
Number of auxiliary contacts as make contacts: 1
Number of auxiliary contacts as break contacts: 1
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V: 18.5 kW, rated operational current Ie at AC-3, 400 V: 38 A, coil: 12 V DC. Dimensions (WxHxD): 45 x 85 x 101 mm, weight: 0.54 kg. Category: AC-1, AC-4, AC-3. Integrated bidirectional amplitude limiting diode. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts. Certifications according to CCC, CSA, BV, RINA, LROS, DNV, GOST, UL, GL. Product standards according to EAN: 3389110361919.
