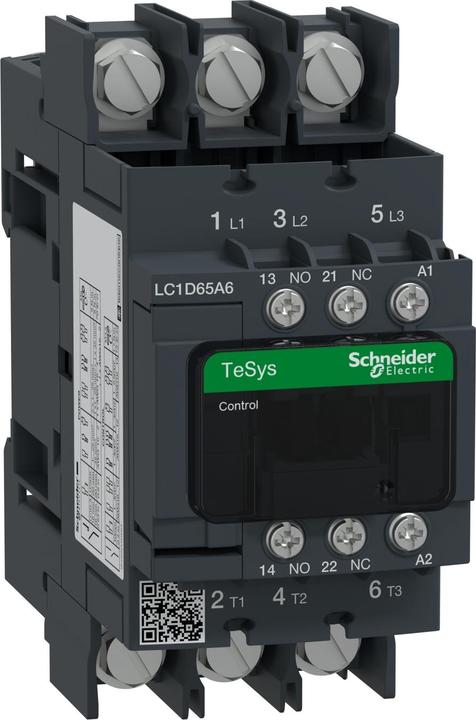

Schneider Electric power contactor LC1D65A6P7

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D65A6P7
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Type of voltage for actuation: AC
Rated operational current Ie at AC-1, 400 V: 80 A
Rated operational current Ie at AC-3, 400 V: 65 A
Rated operational power at AC-3, 400 V: 30 kW
Rated operational current Ie at AC-4, 400 V: 25 A
Rated operational power at AC-4, 400 V: 11 kW
Suitable for series installation: No
Number of auxiliary contacts as NO: 1
Number of auxiliary contacts as NC: 1
Connection type main circuit: Other
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V: 30 kW, rated operational current Ie at AC-3, 400 V: 65 A, coil: 230 V AC.
Dimensions (WxHxD): 55x122x120 mm, weight: 0.86 kg.
Category: AC-3, AC-4, AC-1.
Without integrated wiring module. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts. Certifications according to GOST, CSA, UL, CCC.
Product standards: EAN: 3389118328860.
