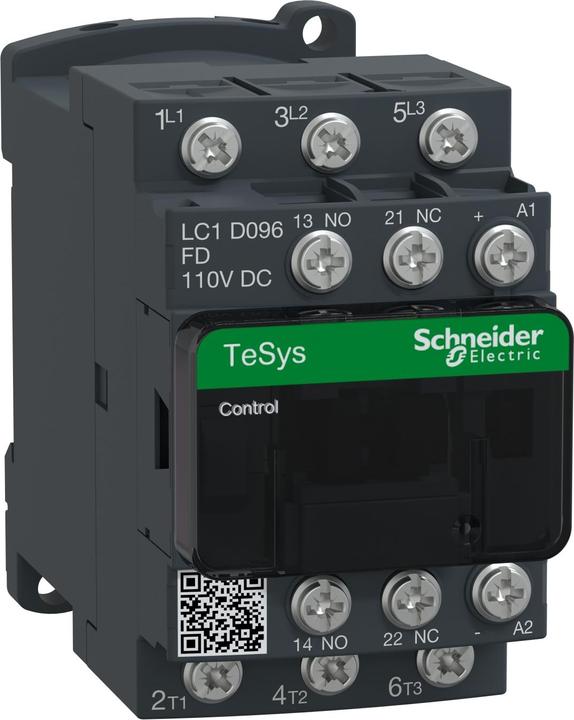

Schneider Electric power contactor LC1D096FD

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D096FD
Rated control supply voltage Us at DC: 110 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 25 A
Rated operational current Ie at AC-3, 400 V: 9 A
Rated operational power at AC-3, 400 V: 4 kW
Rated operational current Ie at AC-4, 400 V: 6 A
Rated operational power at AC-4, 400 V: 2.2 kW
Suitable for series installation: No
Number of auxiliary contacts as NO: 1
Number of auxiliary contacts as NC: 1
Connection type main circuit: Other
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V: 4 kW, rated operational current Ie at AC-3, 400 V: 9 A, coil: 110 V DC.
Dimensions (WxHxD): 45 x 77 x 95 mm
Weight: 0.48 kg
Category: AC-3, AC-4, AC-1
Integrated bidirectional amplitude limiting diode. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts.
Certifications: GOST, LROS (Lloyds register of shipping), CSA, RINA, UL, BV, GL, DNV, CCC.
Product standards: EAN: 3389110805970.
