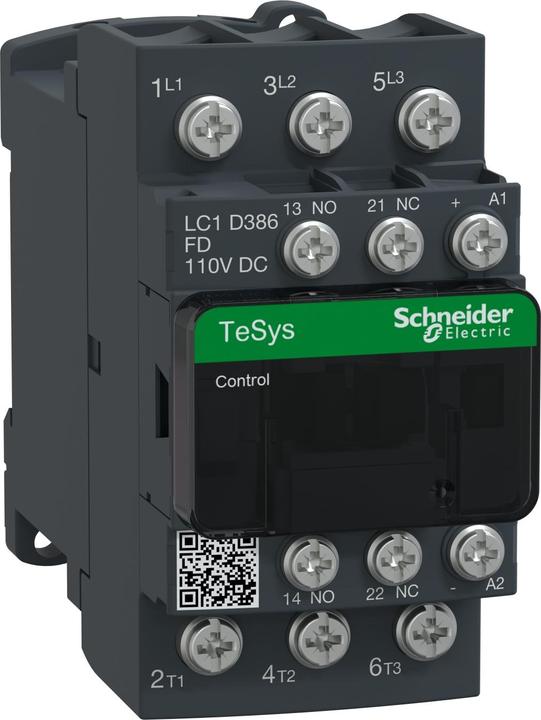

Schneider Electric power contactor LC1D386FD
Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D386FD
Rated control supply voltage Us at DC: 110 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 50 A
Rated operational current Ie at AC-3, 400 V: 38 A
Rated operational power at AC-3, 400 V: 18.5 kW
Rated operational current Ie at AC-4, 400 V: 18 A
Rated operational power at AC-4, 400 V: 7.5 kW
Suitable for series installation: No
Number of auxiliary contacts as NO: 1
Number of auxiliary contacts as NC: 1
Connection type main circuit: Other
Number of NO contacts as main contacts: 3
Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V: 18.5 kW, rated operational current Ie at AC-3, 400 V: 38 A, coil: 110 V DC.
Dimensions (WxHxD): 45 x 85 x 101 mm, weight: 0.54 kg.
Category: AC-3, AC-4, AC-1.
Integrated bidirectional amplitude limiting diode. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts.
Certifications: CSA, DNV, CCC, RINA, LROS (Lloyds Register of Shipping), GOST, BV, GL, UL.
Product standards: EAN: 3389110808346.
input voltage | 110 V |
Scope of delivery | Power contactor LC1D386FD |
Output voltage | 400 V |
Output current type | AC |
Electric current output | 38 A |
Relay type | Power contactor |
Item number | 33589256 |
Manufacturer | Schneider Electric |
Category | Relays |
Manufacturer no. | LC1D386FD |
Release date | 17.5.2023 |
Relay type | Power contactor |
input voltage | 110 V |
Output voltage | 400 V |
Electric current output | 38 A |
Output current type | AC |
Switching function | Opener |
Number of openers | 1 x |
Number of closers | 3 x |
Number of poles | 3 x |
Number of switching cycles | 1 x |
Max. Switching capacity | 18.50 kW |
Manufacturer Type | LC1D386FD |
Smart Home | Not compatible |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Power contactor LC1D386FD |
Length | 101 mm |
Width | 45 mm |
Height | 85 mm |
Weight | 540 g |
Product Safety |
