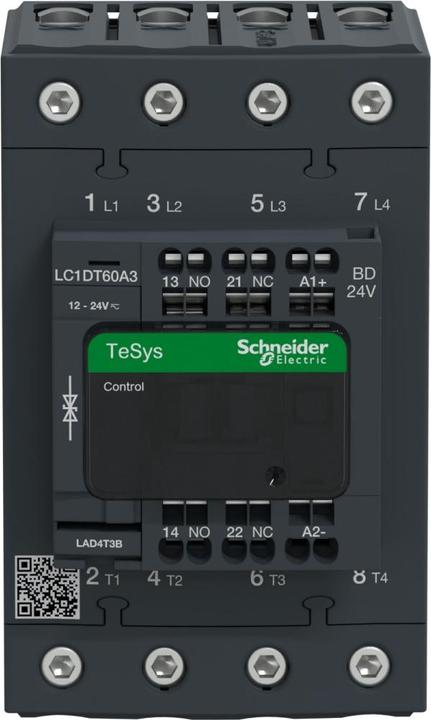

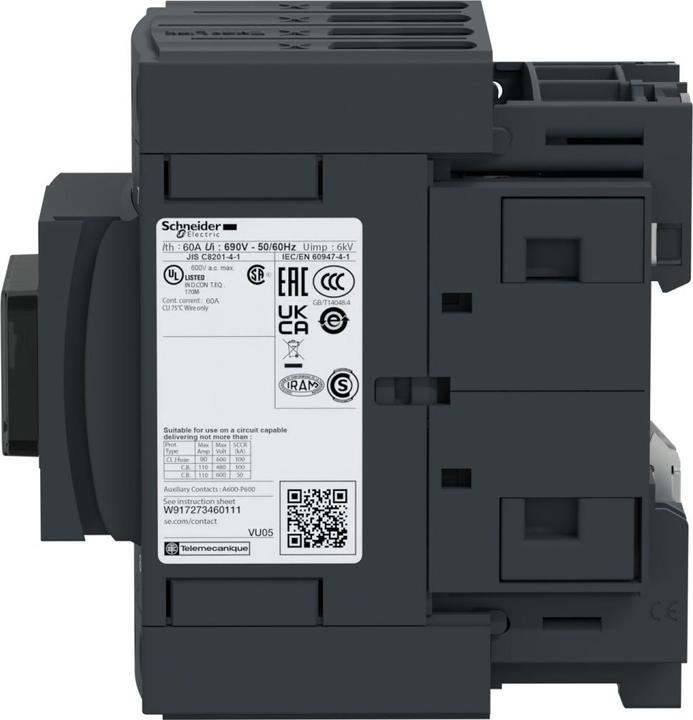

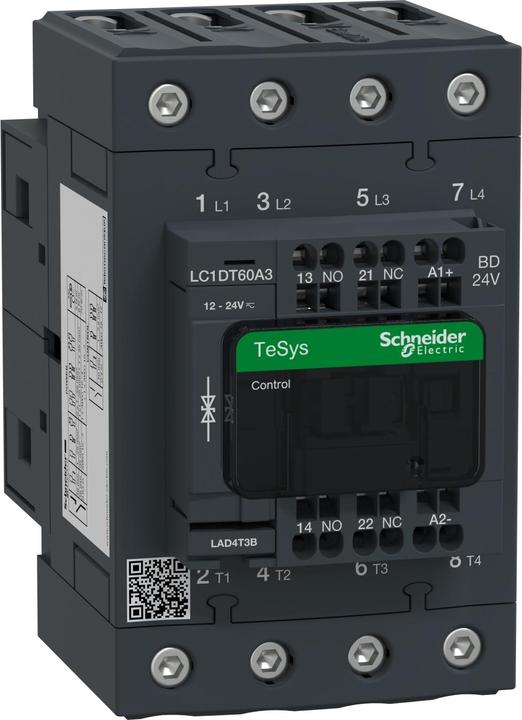

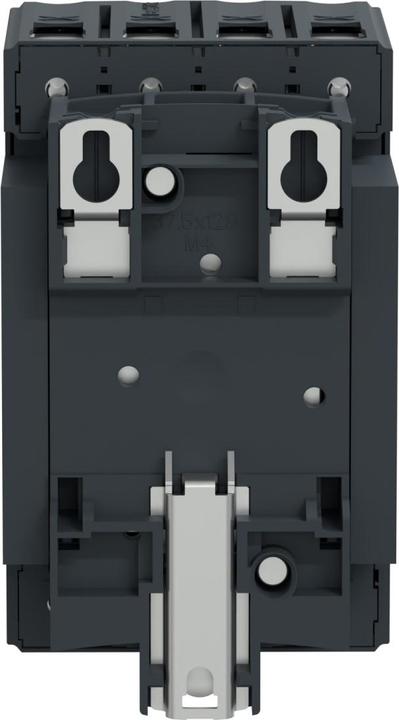

Schneider Electric Contactor LC1DT60A3BD

Manufacturer: Schneider Electric
Designation: 4-pole contactor, 1 normally closed, 1 normally open
Type: LC1DT60A3BD
Rated control supply voltage Us for DC: 24 V
Type of voltage for actuation: DC
Rated operational current Ie for AC-1, 400 V: 60 A
Rated operational current Ie for AC-3, 400 V: 40 A
Rated operational power for AC-3, 400 V: 18.5 kW
Suitable for rail mounting: no
Number of auxiliary contacts as normally closed: 1
Number of auxiliary contacts as normally open: 1
Connection type for main circuit: Spring terminal connection
Number of normally closed contacts as main contacts: 4

Schneider Electric Contactor LC1DT60A3BD: additional details
Standard contactors from 0.06 - 75 kW. In addition to an appealing and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm. They meet international standards. The current ratings of 40 to 65 A are equipped with EverLink terminals, which are patented and ensure a reliable and durable connection.
