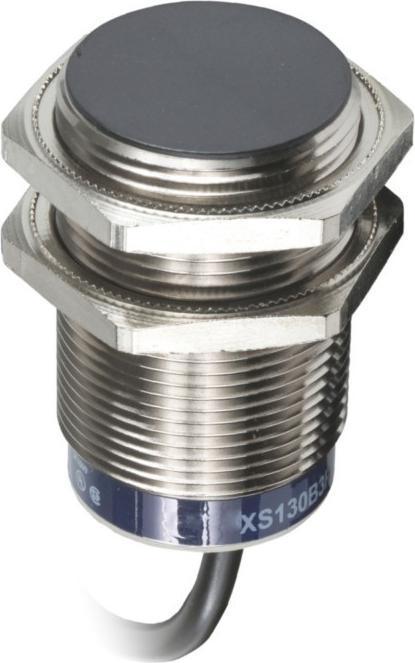

TE Sensors proximity switch inductive XS130B3PBL2

Manufacturer: TE Sensors
Designation: Proximity switch inductive M30 PNP NC flush 2M
Type: XS130B3PBL2
Length of sensor: 43 mm
Diameter of sensor: 30 mm
Mechanical installation condition for sensor: flush
Switching distance: 15 mm
Suitable for safety functions: no
Version of switching function: NC contact
Version of switching output: PNP
Version of electrical connection: cable radial
Number of semiconductor outputs with signalling function: 1
Type of actuation: metallic target
Version of interface: without
Design of the interface for safety-related communication: without
Enclosure type: cylinder, thread
Coating of enclosure: nickel-plated
Cascadable: no
SIL according to IEC 61508: without
Performance level according to EN ISO 13849-1: without
Max. output current at the safe output: 200 mA
Output current at safe output: 200 mA
Supply voltage: 12..24 V
Rated control supply voltage Us at DC: 12..24 V
Voltage type: AC/DC
Switching frequency: 500 Hz
With monitoring function of downstream devices: no
Material of enclosure: metal
Flameproof: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference resistance to magnetic fields: interference resistant to magnetic direct and alternating fields

TE Sensors proximity switch inductive XS130B3PBL2: more details
OsiSense XS - inductive proximity switches with increased switching distance, round design.
XS1 inductive proximity switch. Dimensions M30 x 42 mm, connection cable 2 m, output NC, conductor 3-L, DC, switching distance: 15 mm, protection class IP 65, IP 67. Metal housing with 2 m connection cable or M8 or M12 plug (or M8 plug for version DM 6.5 and DM 8 mm). Flush mounting. Operating voltage Ub 10-36 V DC, output 3-wire technology, PNP. Sensors have E2 approval for mobile applications.
