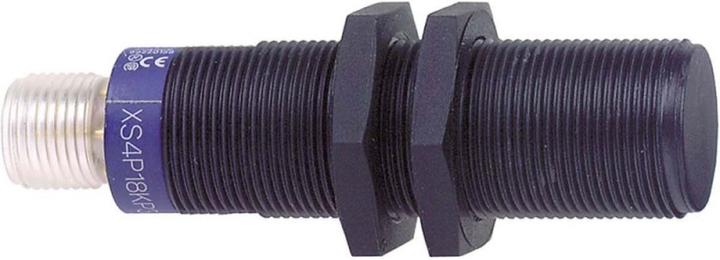

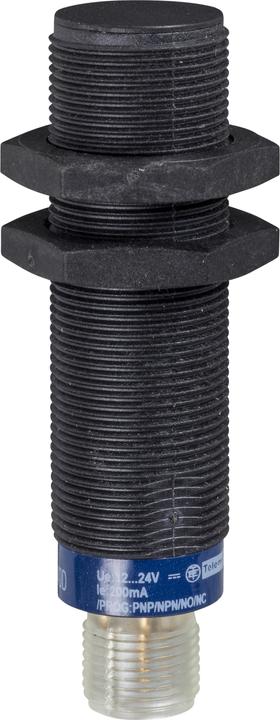

TE Sensors Inductive Proximity Switch XS4P18PB370D

Manufacturer: TE Sensors
Description: Inductive proximity switch M18, Sn 8 mm
Type: XS4P18PB370D
Length of the sensor: 70 mm
Diameter of the sensor: 18 mm
Mechanical installation condition for sensor: non-flush
Switching distance: 8 mm
Suitable for safety functions: no
Type of switching function: Normally open
Type of switching output: PNP/PNP
Type of electrical connection: M12 connector
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: Cylinder, threaded
Housing coating: other
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12..48 V
Rated control supply voltage Us at DC: 12..48 V
Voltage type: AC/DC
Switching frequency: 2000 Hz
With monitoring function for downstream devices: no
Material of the housing: Plastic
Pressure resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Immunity to magnetic fields: immune to static magnetic fields

TE Sensors Inductive Proximity Switch XS4P18PB370D: additional details
XS4 inductive proximity switch in cylindrical design M18, length 70 mm, PPS plastic housing, switching distance Sn 8 mm, power supply 12-48 V DC, M12 connector. EAN: 3389110926972.
