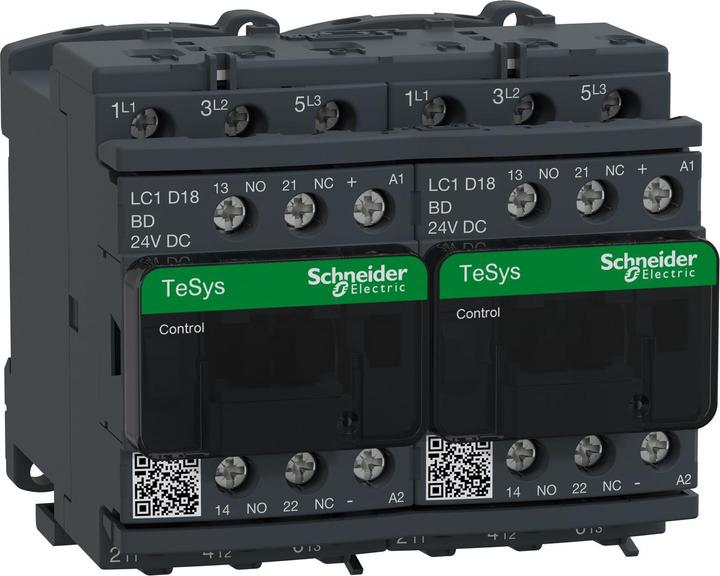

Schneider Electric reversing contactor combination LC2D18BDV

Manufacturer: Schneider Electric
Designation: Reversing contactor combination
Rated power: 7.5 kW / 400 V / AC3
Type: LC2D18BDV
Function: Reversing contactor
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Rated operating current Ie at AC-3, 400 V: 18 A
Rated operating power at AC-3, 400 V: 7.5 kW
Rated operating power NEMA: 7.46 kW
Number of NO contacts as main contacts: 3
Type of electrical connection for auxiliary and control circuit: Screw connection
Type of connection for main circuit: Screw connection
Protection class (IP): IP20
Protection class (NEMA): Other
Rail mounting possible: No

This 3-pole TeSys D reversing contactor is designed for motor applications up to 7.5 kW at 400 V. It features 24 V DC coils, 2 S + 2 Ö integrated auxiliary switches (NC mirror contacts), and power and control connections via screw terminals. The unit is equipped with pre-wired power connections with a reversing function, mechanical interlock, and electrical interlock. Compact at 90 mm wide and suitable for DIN rail mounting, it ensures high reliability and durability. It complies with multiple standards (IEC, UL, CSA, CCC, EAC, Marine) and meets Green Premium conformity (RoHS/REACH).
