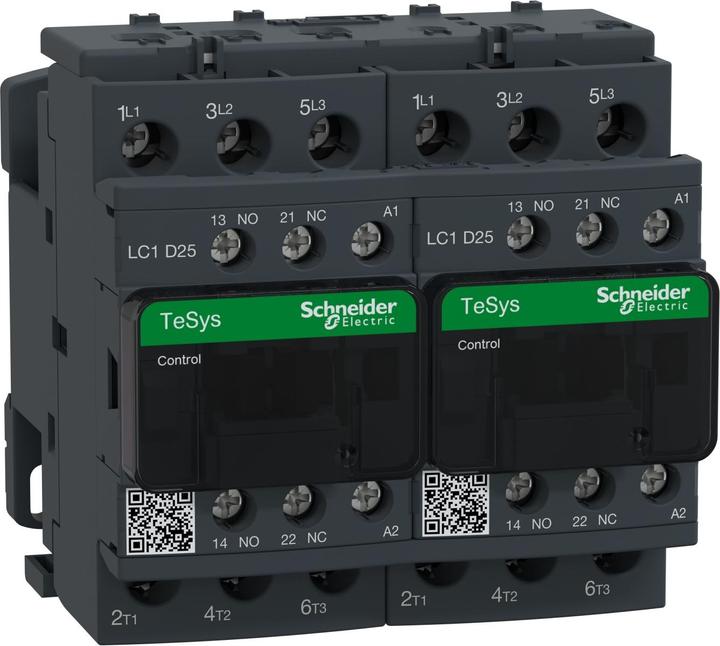

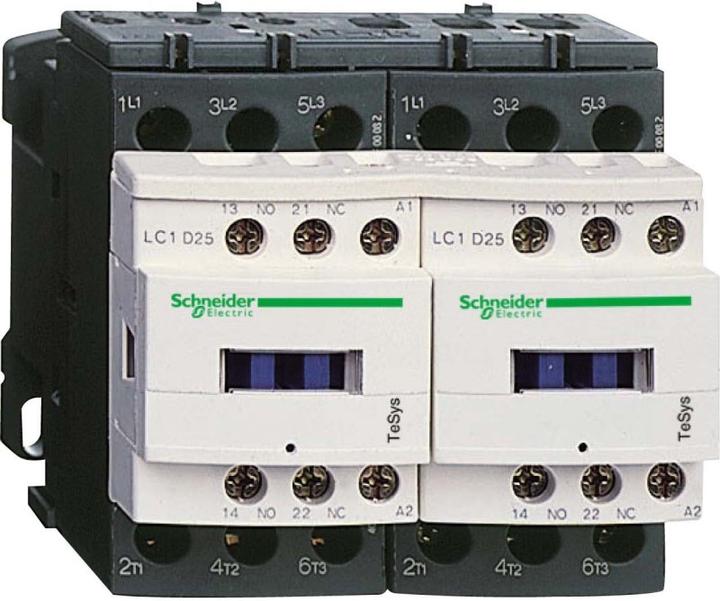

Schneider Electric reversing contactor combination LC2D25G7V

Manufacturer: Schneider Electric
Designation: Reversing contactor combination 11kW/400V/AC3
Type: LC2D25G7V
Function: Reversing contactor
Rated control supply voltage Us at AC 50 Hz: 120 V
Rated control supply voltage Us at AC 60 Hz: 120 V
Type of voltage for actuation: AC
Rated operating current Ie at AC-3, 400 V: 25 A
Rated operating power at AC-3, 400 V: 11 kW
Rated operating power NEMA: 11.2 kW
Number of NO contacts as main contacts: 3
Type of electrical connection for auxiliary and control circuit: Screw connection
Type of connection for main circuit: Screw connection
Type of protection (IP): IP20
Type of protection (NEMA): Other
Rail mounting possible: No

The TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm. They fulfill international standards. The power ratings 40 to 65 A are equipped with EverLink terminals, which guarantee a reliable and permanent connection.
