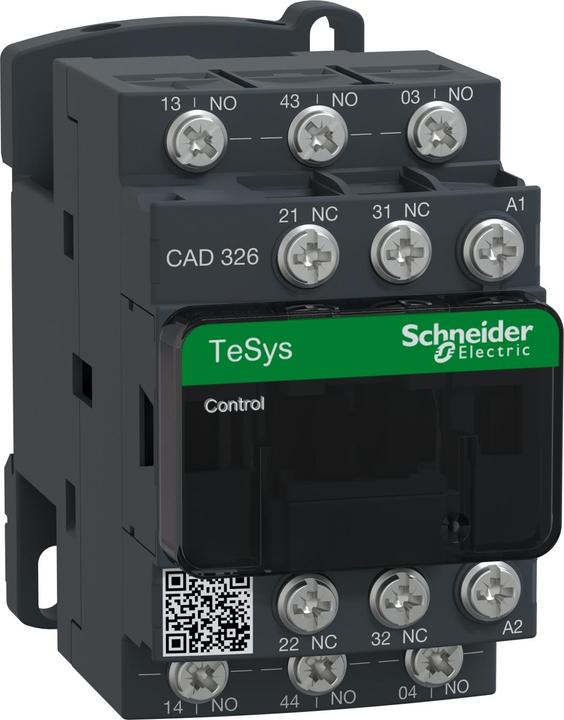

Schneider Electric Auxiliary Contactor CAD326R7
Manufacturer: Schneider Electric
Designation: Auxiliary Contactor 3S, 2Ö, 440V
Type: CAD326R7
Rated control supply voltage Us at AC 50 Hz: 440 V
Rated control supply voltage Us at AC 60 Hz: 440 V
Voltage type for actuation: AC
Rated operational current Ie, 400 V: 10 A
Connection type auxiliary circuit: Other
Mounting type: DIN rail/screw
Interface: No
Number of auxiliary contacts as break contacts: 2
Number of auxiliary contacts as make contacts: 3
With LED display: No
Suitable for manual operation: No

Schneider Electric Contactor Relay CAD326R7: Further details
Standard contactors 0.06 - 75 kW. In addition to an attractive and functional design, TeSys D contactors offer quick and easy installation with a narrow overall width of 45 or 55 mm. They comply with international standards. The power sizes 40 to 65 A are equipped with EverLink terminals, which are patented and guarantee a reliable and durable connection.
EAN: 3389118003781.
