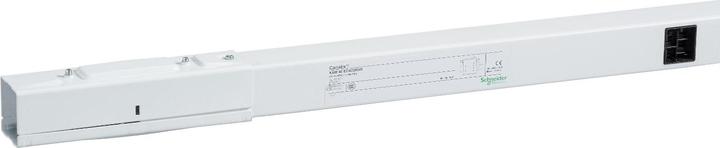

This is a straight length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and socket distribution. The rated operational current is 40 A at 35 °C. The rated operational voltage ranges from 230 VAC to 400 VAC at 50/60 Hz. This straight length accommodates a maximum of 3 outgoing circuits per meter in the main circuit (front) and a maximum of 2 outgoing circuits in the adjacent circuit (rear). It houses 2 independent circuits with 3L+N+PE polarity. It offers an IP55 protection rating according to IEC 60529, ensuring protection of the trunking against splashes and dust. It provides IK06 protection according to IEC 62262 against external mechanical impacts. The length is 3 m, and the cross-section is 46 mm x 46 mm. Sold in packs of 6 units. It is made of white painted steel sheet RAL 9003. Canalis KBB complies with the IEC/EN 61439-6 standard. It is non-flame propagating according to the recommendations of IEC 60332-3. All insulating and plastic materials are halogen-free and have increased fire resistance (IEC 60695-2).
