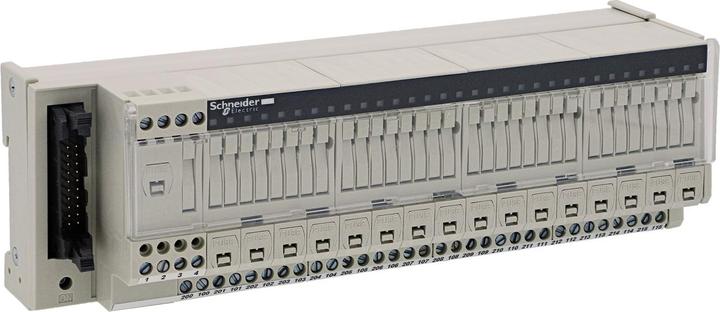

Schneider Electric Terminal Block ABE7H16S43

Manufacturer: Schneider Electric
Description: Terminal block with 16 inputs
Type: ABE7H16S43
Cable outer diameter for cable gland: 0 mm
Length of pre-assembled cable: 0 m
Configurable cable length: yes
Number of sensor/actuator slots: 1
Number of channels per slot: 16
Design of exits for sensor/actuator cables: other
Number of poles for sensor/actuator slots: 16
Rated voltage: 24 V
Degree of pollution: 2
Operating voltage: 24 V
Max. current load per I/O signal: 0.125 A
Max. current load per connection socket: 1.8 A
Max. total current: 1.8 A
Diameter of contact socket: 0 mm
Material of contact base body: other copper alloys
Material of contact coating: other
Material of insulating body: other
Threaded sockets of sensor/actuator slots: other
With LED display: yes
With potential separation: no
Connection for NPN sensors: no
Cable drag chain suitability of fixed cable version: no
Material of housing: plastic
Housing color: gray
Operating temperature: -5..60 °C
Protection class (IP): IP2X
Explosion protection category for gas: none
Explosion protection category for dust: none
Width: 206 mm
Height: 70 mm

Schneider Electric Terminal Block ABE7H16S43: further details
Pre-wired distribution block Advantys Telefast means simplicity to streamline the wiring of your devices in your automation system.
EAN: 3389110644524.
