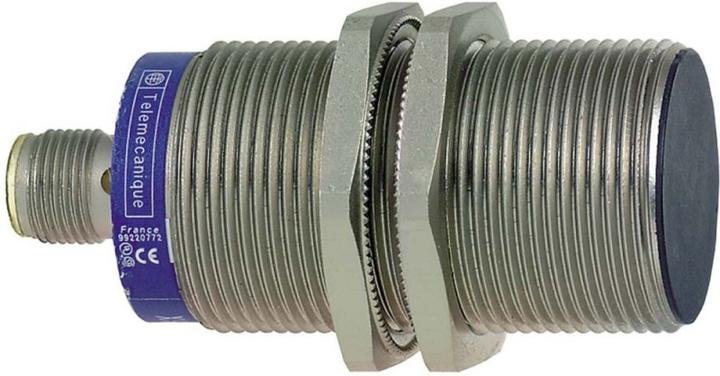

The Yageo XS1-Indu proximity switch M30 has a cylindrical format with a length of 64 mm. The housing is made of brass and has a switching distance of 10 mm. The proximity switch can be operated with a 12-24 V DC voltage and is equipped with an M12 connector. It features a metallic target, and the housing design is a threaded cylinder with a nickel-plated coating. Due to its robust and reliable design, the Yageo XS1-Indu proximity switch is perfect for industrial applications.

Features:

• Sensor length: 64 mm
• Sensor diameter: 30 mm
• Mechanical installation condition for sensor: flush
• Switching distance: 10 mm
• Suitable for safety functions: no
• Type of switching function: normally open
• Type of switching output: two-wire
• Type of electrical connection: M12 connector
• Number of semiconductor outputs with signaling function: 1
• Number of contact outputs with signaling function: 0
• Number of safe semiconductor outputs: 0
• Number of safe contact outputs: 0
• Type of actuation: metallic target
• Type of interface: none
• Type of interface for safety-related communication: none
• Housing design: cylinder, threaded
• Housing coating: nickel-plated
• Cascadable: no
• Category according to EN 954-1: 1
• Performance Level according to EN ISO 13849-1: none
• Max. output current at safe output: 10 mA
• Supply voltage: 12 V
• Rated control supply voltage Us at DC: 12 V
• Voltage type: AC/DC
• Switching frequency: 1000 Hz
• With monitoring function for downstream devices: no
• Material of housing: metal
• Pressure-resistant: no
• Explosion protection category for gas: none
• Explosion protection category for dust: none
• Immunity to magnetic fields: immune to magnetic DC and AC fields
• SIL according to IEC 61508: none.
