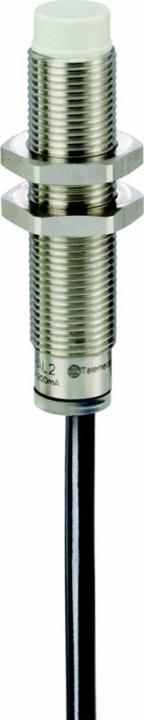

TE Sensors proximity switch inductive XS512B1MAL5

Manufacturer: TE Sensors
Designation: Proximity switch inductive M12, Sn 2mm
Type: XS512B1MAL5
Length of sensor: 53 mm
Diameter of sensor: 12 mm
Mechanical installation condition for sensor: flush
Switching distance: 2 mm
Suitable for safety functions: no
Version of switching function: N/O contact
Version of switching output: 2-wire
Version of electrical connection: cable radial
Number of semiconductor outputs with signalling function: 1
Type of actuation: metallic target
Version of interface: without
Version of the interface for safety-related communication: without
Enclosure type: cylinder, thread
Coating of enclosure: nickel-plated
Cascadable: no
SIL according to IEC 61508: without
Performance level according to EN ISO 13849-1: without
Max. output current at the safe output: 200 mA
Output current at safe output: 200 mA
Supply voltage: 24..240 V
Rated control supply voltage Us at AC 50 Hz: 24..240 V
Rated control supply voltage Us at AC 60 Hz: 24..240 V
Rated control supply voltage Us at DC: 24..240 V
Voltage type: AC/DC
Switching frequency: 1000 Hz
With monitoring function of downstream devices: no
Enclosure material: Metal
Flameproof: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Immunity to magnetic fields: interference resistant against magnetic direct and alternating field

Further details: XS5 inductive proximity switch in cylindrical design M12, length 53 mm, brass, switching distance Sn 2 mm, power supply 24-240 V AC/DC, 5 m connection cable.
EAN: 3389119046831.
