TE Sensors proximity switch inductive XS618B1MAL01C
Manufacturer: TE Sensors
Designation: Proximity switch inductive M18, Sn 8mm
Type: XS618B1MAL01C
Length of sensor: 62 mm
Diameter of sensor: 18 mm
Mechanical installation condition for sensor: flush
Switching distance: 8 mm
Suitable for safety functions: no
Version of switching function: N/O contact
Version of switching output: 2-wire
Version of electrical connection: other
Number of semiconductor outputs with signalling function: 1
Type of actuation: metallic target
Version of interface: without
Design of the interface for safety-related communication: without
Enclosure type: cylinder, thread
Coating of enclosure: nickel-plated
Cascadable: no
SIL according to IEC 61508: without
Performance level according to EN ISO 13849-1: without
Max. output current at the safe output: 200 mA
Output current at safe output: 200 mA
Supply voltage: 24..240 V
Rated control supply voltage Us at AC 50 Hz: 24..240 V
Rated control supply voltage Us at AC 60 Hz: 24..240 V
Rated control supply voltage Us at DC: 24...240 V
Voltage type: AC/DC
Switching frequency: 1000 Hz
With monitoring function of downstream devices: no
Enclosure material: metal
Flameproof: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Immunity to magnetic fields: immunity to magnetic direct and alternating fields

TE Sensors proximity switch inductive XS618B1MAL01C: further details

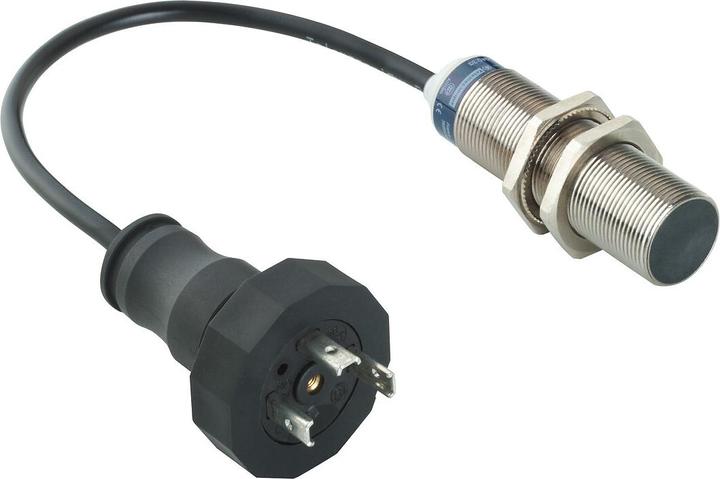

XS6 inductive proximity switch in cylindrical design M18, length 62 mm, brass, switching distance Sn 8 mm, power supply 24-240 V, 0.15 m connection cable + DIN connector.
