Schneider Electric XS8-Indu. Prosthesis 40x40x70, PBT, Sn XS8C2A1NCM12
SwitchProduct details
STHU Proximity Switch XS8C2A1NCM12
Manufacturer: STHU
Description: Inductive proximity switch
Type: XS8C2A1NCM12
Sensor width: 70 mm
Sensor height: 40 mm
Sensor length: 40 mm
Mechanical installation condition for sensor: flush
Switching distance: 20 mm
Suitable for safety functions: no
Switching function design: other
Switch output design: NPN/NPN
Electrical connection design: M12 connector
Number of semiconductor outputs with signaling function: 2
Number of safe semiconductor outputs: 2
Type of actuation: metallic target
Interface design: none
Interface design for safety-related communication: none
Housing design: rectangular
Housing coating: other
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12..48 V
Rated control supply voltage Us at DC: 12..48 V
Type of voltage: AC/DC
Switching frequency: 300 Hz
With monitoring function for downstream devices: no
Material of the housing: plastic
Pressure resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference immunity against magnetic fields: immune to magnetic static fields
STHU Proximity Switch XS8C2A1NCM12: further details

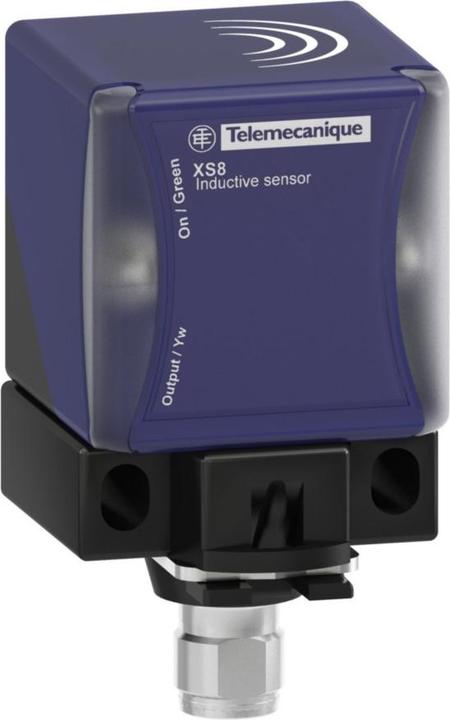

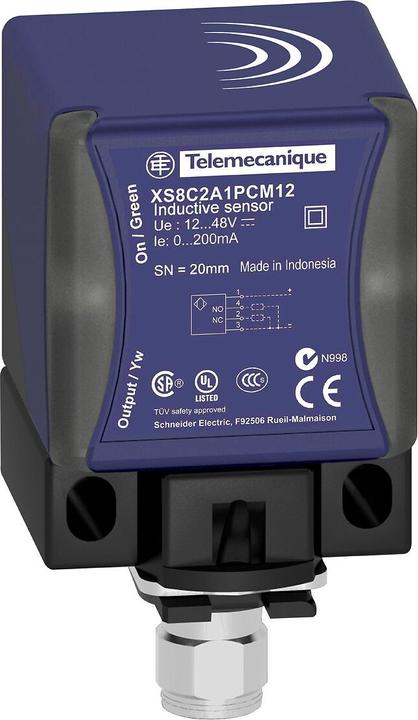

XS8 Inductive proximity switch dimensions 40x40x70 mm, PBT plastic housing, switching distance Sn 20 mm, power supply 12-48 V DC, M12 connector.
EAN: 3389119057981.
Compatible hardware | Various |
Item number | 33593815 |
Manufacturer | Schneider Electric |
Category | Electronics modules |
Manufacturer no. | XS8C2A1NCM12 |
Release date | 17.5.2023 |
Compatible hardware | Various |
Module type | Switch |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Length | 40 mm |
Width | 70 mm |
Height | 40 mm |
