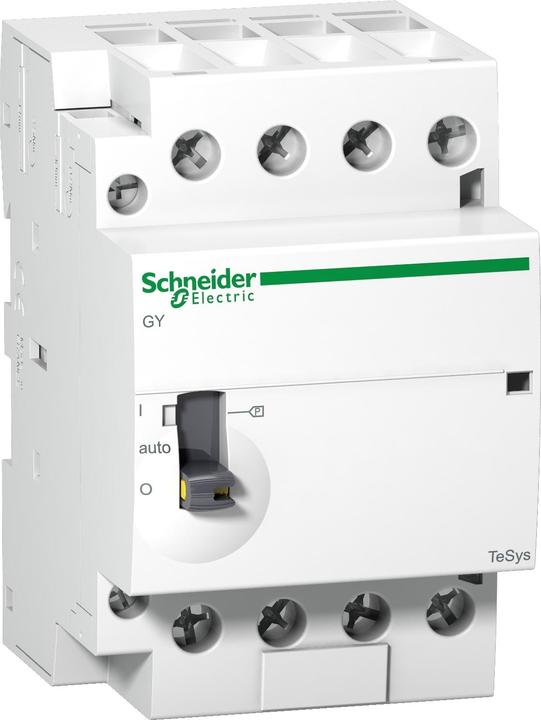

Schneider Electric preset contactor GY4040M5
Manufacturer: Schneider Electric
Designation: Preset contactor 4P 40A 4S 230V 50Hz
Type: GY4040M5
Rated operational voltage: 0...415 V
Rated operational current: 40 A
Utilisation category: 7
Rated operational voltage: 220...240 V
Voltage type of operational voltage: AC
Number of contacts as NO: 4
Max. lamp load: 26,000 W
Incandescent lamp load: 26,000 W
Max. fluorescent lamp load: 7,200 VA
Max. load of fluorescent lamps (duo circuit): 8,400 VA
Max. fluorescent lamp load (parallel compensated): 7,200 VA
Fluorescent lamp load (parallel compensated): 4,800 VA
Slider for manual switching: Yes
Width in divisions: 54
Mounting depth: 62.5 mm
Additional devices possible: Yes
With day/night function: Yes
Protection class (IP): IP20
Schneider Electric preselection contactor GY4040M5: more details
Motor protection switch with thermal and magnetic tripping. These devices are easy to use and set up, with compact and ergonomic products for starter motor and stop motor requirements.
EAN: 3389110642704.
input voltage | 240 V |
Output voltage | 240 V |
Output current type | AC/DC |
Electric current output | 40 A |
Relay type | Installation contactor |
Item number | 33588009 |
Relay type | Installation contactor |
input voltage | 240 V |
Output voltage | 240 V |
Electric current output | 40 A |
Output current type | AC/DC |
Switching function | Opener |
Number of closers | 4 x |
Manufacturer Type | GY4040M5 |
Smart Home | Compatible |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Width | 54 mm |
Product Safety |
