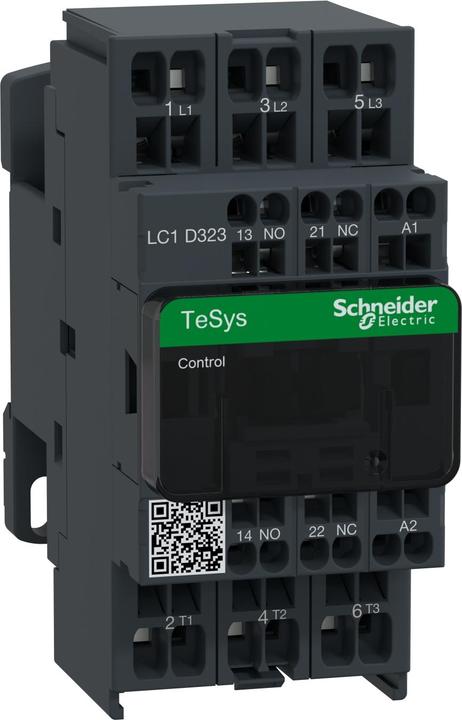

Schneider Electric power contactor LC1D323F7

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D323F7
Rated control supply voltage Us at AC 50 Hz: 110 V
Rated control supply voltage Us at AC 60 Hz: 110 V
Voltage type for actuation: AC
Rated operational current Ie at AC-1, 400 V: 50 A
Rated operational current Ie at AC-3, 400 V: 32 A
Rated operational power at AC-3, 400 V: 15 kW
Rated operational current Ie at AC-4, 400 V: 32 A
Rated operational power at AC-4, 400 V: 7.5 kW
Rated operational power NEMA: 14.9 kW
Suitable for series installation: No
Number of auxiliary contacts as NO: 1
Number of auxiliary contacts as NC: 1
Connection type main circuit: Spring-cage connection
Number of NO contacts as main contacts: 3

Further details:
Power contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC, rated operational power at AC-3, 400 V 15 kW, rated operational current Ie at AC-3, 400 V 32 A, coil 110 V AC.
Dimensions (WxHxD): 45 x 99 x 92 mm, weight: 0.375 kg.
Category: AC-4, AC-1, AC-3.
Without integrated wiring module. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts.
Certifications according to BV, RINA, UL, CCC, GOST, GL, LROS (Lloyds register of shipping), CSA, DNV.
Product standards: EAN: 3389110804997.
