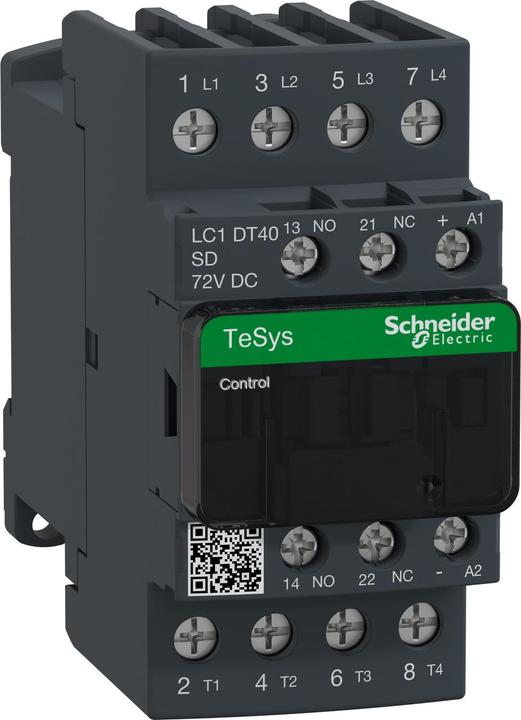

TeSys LC1D power contactor. 4 pole, 4 NO contacts. Additional auxiliary contacts include 1 NO contact and 1 NC contact, with a coil voltage of 72 V DC. Dimensions are 45 x 91 x 107 mm, and it weighs 0.425 kg. It is categorized as AC-1. The device features an integrated bidirectional amplitude limiter diode and is quick and easy to set up. It provides a safe and durable power connection with Everlink and spring terminals. This contactor is suitable for safety applications due to mechanically coupled contacts and mirror contacts. It has certifications according to GL, CSA, UL, BV, DNV, LROS (Lloyds Register of Shipping), GOST, RINA, and CCC.
input voltage | 72 V |
Scope of delivery | 1 closer, 1 opener |
Output current type | AC |
Electric current output | 40 A |
Relay type | Power contactor |
Item number | 33586515 |
Manufacturer | Schneider |
Category | Relays |
Manufacturer no. | LC1DT40SD |
Release date | 17.5.2023 |
Relay type | Power contactor |
input voltage | 72 V |
Electric current output | 40 A |
Output current type | AC |
Switching function | Opener |
Number of openers | 1 x |
Number of closers | 4 x |
Number of poles | 4 x |
Manufacturer Type | LC1DT40SD |
Smart Home | Not compatible |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 closer, 1 opener |
Length | 107 mm |
Width | 45 mm |
Height | 91 mm |
Weight | 425 g |
