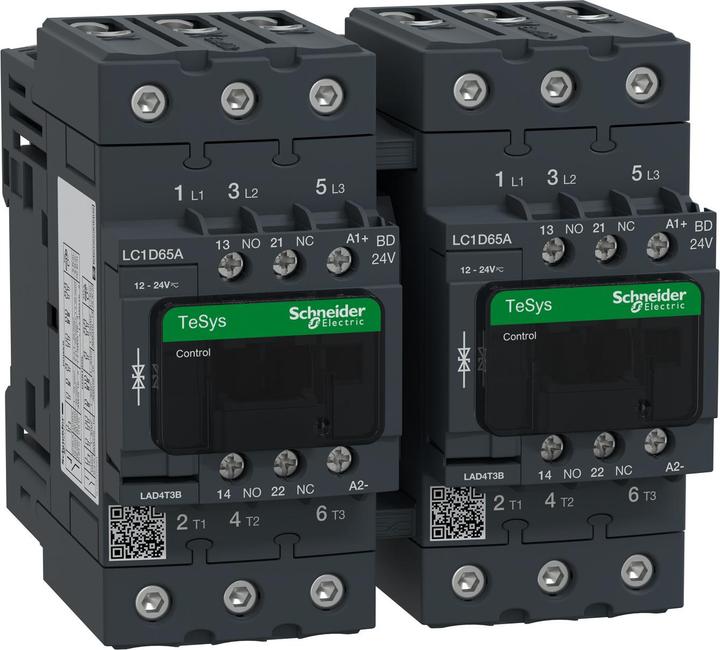

Schneider Electric reversing contactor LC2D65ABD

Manufacturer: Schneider Electric
Designation: Reversing contactor 3P, 65A, 24VDC
Type: LC2D65ABD
Function: Reversing contactor
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Rated operating current Ie at AC-3, 400 V: 65 A
Rated operating power at AC-3, 400 V: 30 kW
Rated operating power NEMA: 29.8 kW
Number of NO contacts as main contacts: 3
Type of electrical connection for auxiliary and control circuit: Screw connection
Type of connection for main circuit: Screw connection
Protection class (IP): IP20
Protection class (NEMA): Other
Rail mounting possible: No

Further details: 3-pole reversing contactor TeSys D for motor applications. Rated 65A AC-3 30kW at 400V, includes one 24V DC coil, 2 NC + 2 NO auxiliary contacts, one mechanical interlock.
