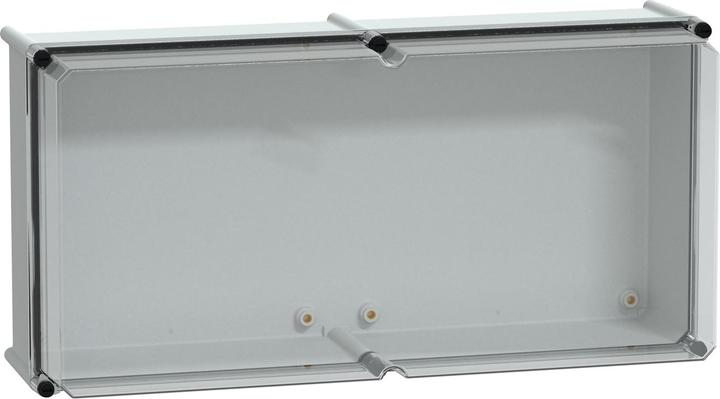

Schneider Electric polyester enclosure NSYPLS3672AG

Manufacturer: Schneider Electric
Designation: Polyester enclosure
Dimensions: 360 x 720 x 230 mm
Type: NSYPLS3672AG
Mounting type: Surface-mounted
Type of cover: Cover
Cover design: Closed
Type of door: Without
Transparent cover/door: Yes
With lock: No
Height: 360 mm
Width: 720 mm
Depth: 230 mm
Internal depth: 213.5 mm
Material thickness enclosure: 2 mm
Material thickness door/lid: 3.5 mm
Colour: Grey
RAL number: 7035
Mounting option: Yes
Enclosure material: Plastic
Surface protection: Untreated
With mounting plate: No
Suitable for outdoor use: Yes
Suitable for lightning protection: No
Protection class (IP): IP66
Protection class (NEMA): 4X
Protection class: II
Impact resistance: IK09
Functional integrity: Without

More details: Thalassa PLS Box polyester back with transparent PC cover. Insulating module box. One-piece moulded body. Wall mounting. Highly transparent cover, removable cover locking screw. Polyester reinforced with glass fibre backing, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA 4X, 960°C fire resistance. Insulation class II.
