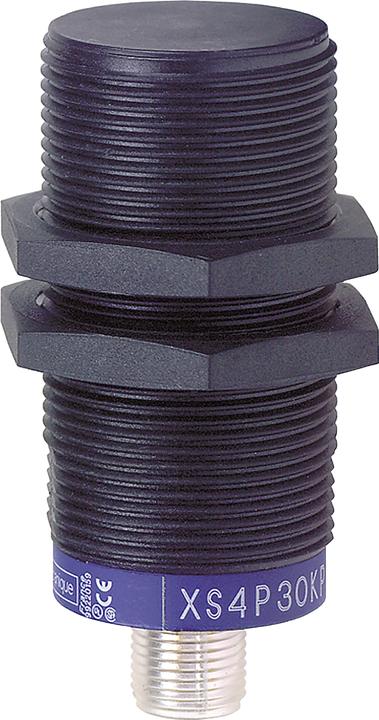

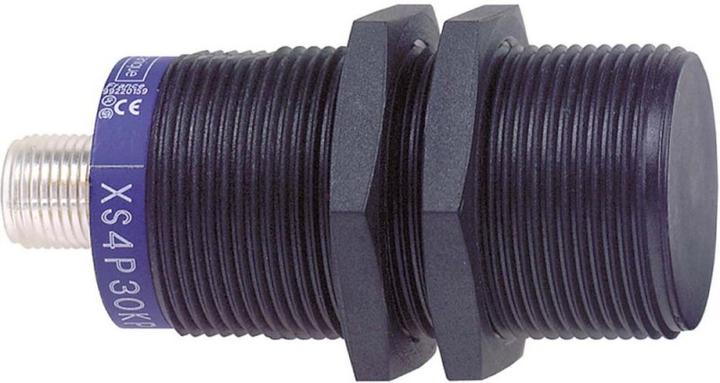

TE Sensors Inductive Proximity Switch XS4P30PA370D

Manufacturer: TE Sensors
Designation: Inductive proximity switch M30, Sn 15mm
Type: XS4P30PA370D
Length of the sensor: 70 mm
Diameter of the sensor: 30 mm
Mechanical installation condition for the sensor: non-flush
Switching distance: 15 mm
Suitable for safety functions: no
Type of switching function: Normally open
Type of switching output: PNP/PNP
Type of electrical connection: M12 connector
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: metallic target
Interface design: none
Interface design for safety-related communication: none
Housing design: Cylinder, threaded
Housing coating: other
Cascadeable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12..48 V
Rated control supply voltage Us at DC: 12..48 V
Type of voltage: AC/DC
Switching frequency: 1000 Hz
With monitoring function for downstream devices: no
Material of the housing: Plastic
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Immunity to magnetic fields: immune to magnetic static fields

TE Sensors Inductive Proximity Switch XS4P30PA370D: further details
XS4-Inductive proximity switch in cylindrical design M30, length 70 mm, PPS plastic housing, switching distance Sn 15 mm, power supply 12-48 V DC, M12 connector.
EAN: 3389110927108.
