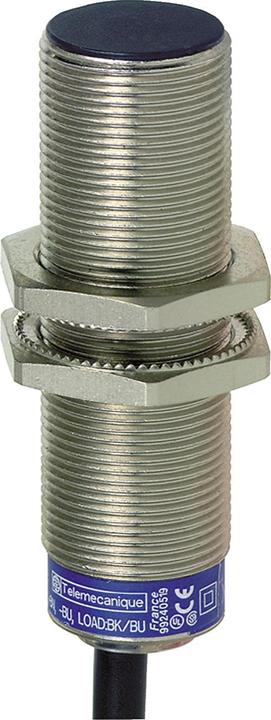

TE Sensors Inductive Proximity Switch XS618B1PBL5

Manufacturer: TE Sensors
Description: Inductive proximity switch M18, sensing distance 8 mm
Type: XS618B1PBL5
Sensor length: 60 mm
Sensor diameter: 18 mm
Mechanical installation condition for sensor: flush
Switching distance: 8 mm
Suitable for safety functions: no
Switching function type: normally open
Output type: PNP/PNP
Electrical connection type: radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Actuation type: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12..48 V
Rated control supply voltage Us for DC: 12..48 V
Voltage type: AC/DC
Switching frequency: 1000 Hz
With monitoring function for downstream devices: no
Housing material: metal
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Immunity to magnetic fields: immune to magnetic static fields

TE Sensors Inductive Proximity Switch XS618B1PBL5: additional details
XS6 inductive proximity switch in cylindrical design M18, length 62 mm, brass, sensing distance Sn 8 mm, power supply 12-48 V DC, 5 m connection cable.
